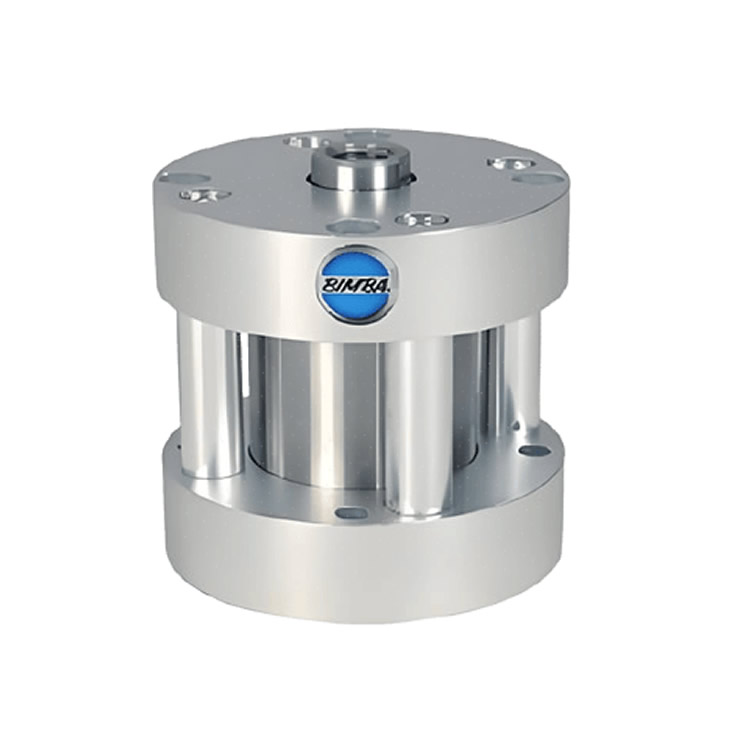

The American Bimba FMD-095-4LNT is a double-acting cylinder from the Flat-I® ultra-thin series, featuring a metric design. It has a bore diameter of 27 mm and an extremely short stroke of only 5 mm, with an overall thickness of less than 12 mm, saving up to 50% in installation space. The cylinder body is made of anodized aluminum, and the piston rod is stainless steel. It incorporates a composite self-lubricating seal internally and can operate maintenance-free for over 5,000 km under a pressure range of 0–0.7 MPa (0–100 psi) and a temperature range of -20°C to 80°C. The M5 sensor slots on both sides are compatible with magnetic reed switches. The front end comes with optional external or internal threads, facilitating direct installation or use with adapter plates. It is suitable for precision automation scenarios requiring short strokes and high-frequency responses, such as high-density fixtures, electronic component pressing, and label application.
