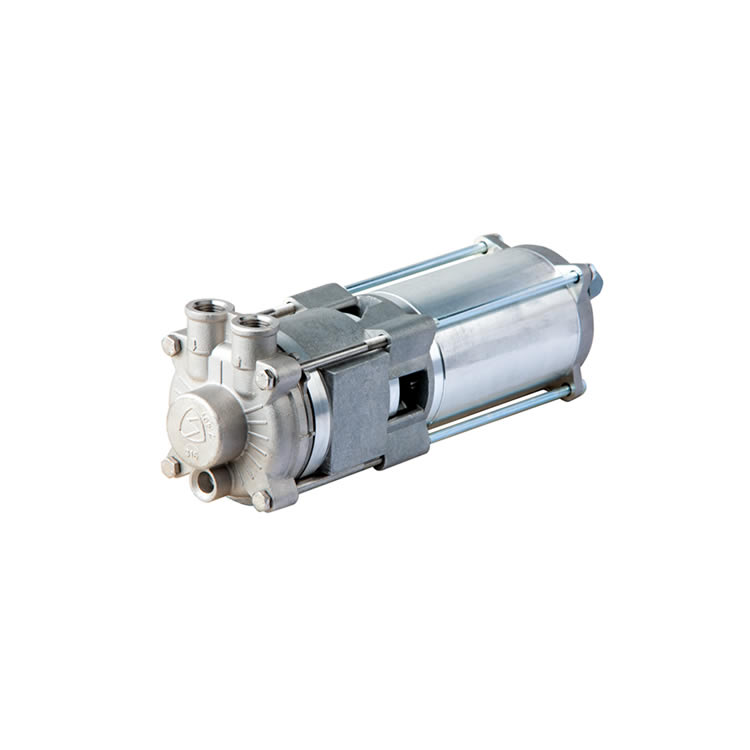

Simaco Elettromeccanica's regenerative turbine pumps with brushless motor DC-24V come from the need to install pumps into systems where a DC network is native, where a compact product - if compared with standard IEC-synchronous motors – with extended lifetime is required.
The electronic control (available with IP54 box and connection cables) is developed for manage only Simaco brushless sensorless motors. It require 24VDC supply voltage, with a power ≥250W. The motor speed is adjustable with dip switch, up to pre-set 4 speed: 2900-3050-3200-3400 rpm.
Tolerance according ISO 9906-2012.
Hydraulic characteristics for water 20°C at nominal pump speed.
Manufactured in accordance with:
EN 60034-1; EN 60034-30; EN 60335-1; EN 60335-2-41.
Characteristics
For clear waters/oils and non-aggressive dilutions, without abrasive substances
DC Brushless motor, Sensorless type, without electronic control board
Continuous duty S1
Protection IP54
Working tolerance: +/-10%
Water dilutions temperature (with anti-freeze additive) -20°C / +120°C
Limit ambient temperature: +40°C
Not self-priming
High efficiency
Long lifetime
On request
Special fluids with temperature <180 °C
Electronic control board
