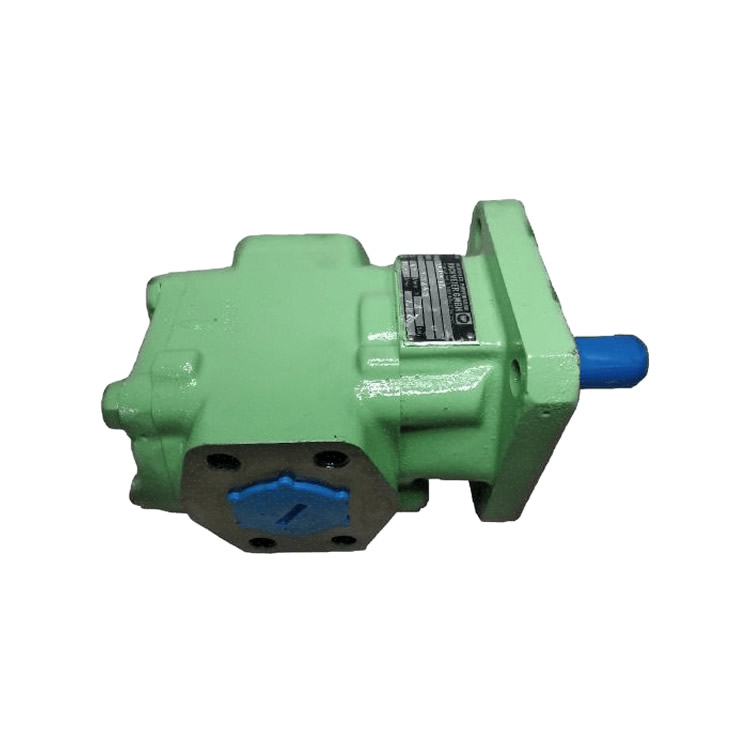

Gear Pump R35/25 FL-Z-DB6-W-SAE1.1/2-R
(330220-5)
Fully Assembled and Tested
Suction Port acc. SAE1.1/2 (without counter flange)
Pressure Connection acc. SAE1.1/2 (without counter flange)
Pump Parameter Information
Medium: Mineral Oil ISO VG 150
Fluid Temperature (°C): 40 (20...80)
Kinematic Viscosity (mm²/s): 150 (*max 544)
Flow Rate (dm³/min): 74
(p1=0 bar, p2=1.6 bar, v=150 mm²/s)
Inlet Pressure (bar): 0 (-0.4...+0.5)
Outlet Pressure (bar): 1.6 (2 bar at 544 mm²/s)
Rotational Speed (rpm): 3000
Direction of Rotation (viewed from shaft end): Clockwise
Recommended Drive Power (kW): 2.0 (dp=15 bar, v=75 mm²/s)
Shaft Seal Type: Rubber Radial Shaft Seal
Pressure Relief Valve: Yes (with internal bypass)
Opening Pressure (Valve) (bar): 2
Pressure Range (Valve) (bar): 1...7
Pump Material
Housing: 5.1301 (EN-GJL-250)
Gear Shaft: 1.7139 (16MnCrS5+FP)
Seal: NBR
Explosion-Proof (Pump): No
Net Weight (kg): 8.7
