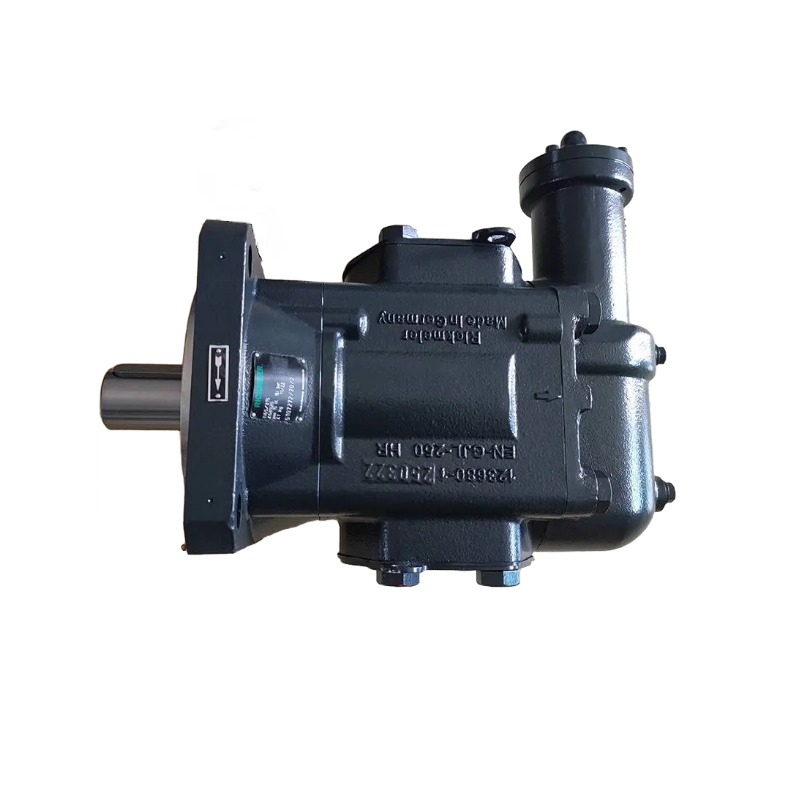

Rickmeier Gear Pump R65/315 FL-Z-DB16-W-SAE3-R-P
Item No.: 474570
Product Overview
External gear pump for lubricating oil and similar media in industrial hydraulic and lubrication systems. Features an integrated pressure relief valve and SAE3 connections on both suction and pressure sides. Clockwise rotation.
| Parameter | Value |
|---|---|
| Model | R65/315 FL-Z-DB16-W-SAE3-R-P |
| Item No. | 474570 |
| Pump type | External gear pump |
| Integrated pressure relief valve | Yes |
| Pressure relief setting range | 1–16 bar |
| Opening pressure (preset) | 10 bar |
| Connections | SAE3 (suction & pressure) |
| Rotation | Clockwise |
| Shaft seal | Single radial shaft seal (FKM) |
| Pumping medium | Lube oil ISO VG 32 |
| Medium temperature | Max. +80 °C |
| Kinematic viscosity | 7–1200 mm²/s |
| Speed | 1450 rpm |
| Flow rate | 426 dm³/min |
| Power consumption | 9.8 kW |
| Recommended driving power | 10.8 kW |
| Net weight | Approx. 41 kg |
| Dimensions (L/W/H) | 390 / 324 / 226 mm |
