Explosion-proof distance meters and sensors for precise distance measurements
The explosion-proof distance meters and laser distance sensors of the LDx, LTG and TDD product families - measurements accurate to the millimetre and micrometre for Ex zones 0, 1, 2, 20, 21, 22
Exact, precise and millimetre-accurate measurement using time-of-flight measurement
Ranges up to 30000 mm with a resolution of 1 mm
Suitable for matt, glossy and different coloured - even black - objects
Explosion-proof, robust stainless steel housing M42 in flameproof Ex "d" enclosure
Approved for Ex zones 1, 2, 21, 22 (gas and dust Ex)
Optical power limitation - sensors may radiate in zones 0 and 20
New! Devices with front panel heating and selectable laser timing
Protection class IP67

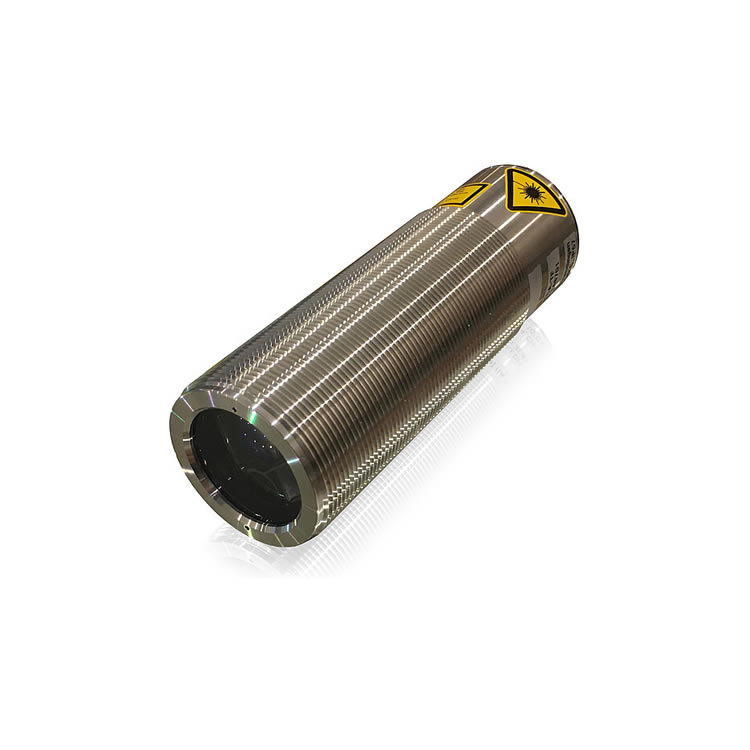

Laser distance sensor LDC-AAA-JAI-OP:
Measurement range analog output:
0.05m to 0.5m
Measurement range digital output:
0.05m to 30m
High measurement accuracy
Analog output signal 4mA to 20mA and serial data interface RS-485
Easy alignment through visible red light laser
Stainless steel 1.4404 housing
3mm aperture at the laser output
