Precise and centimetre-accurate time-of-flight measurement (according to the time-of-flight principle)
Infrared light 860nm with a measuring range from 100 mm to 1000 mm
Works independently of the reflectivity of the object being measured
Explosion-proof, robust and compact M30 metal housing in flameproof Ex "d" enclosure
Approved for operation in Ex zones 1, 2, 21, 22 (gas and dust Ex)
Optical power limitation - sensors may radiate in zones 0 and 20
Versions with switching function and analogue
output 4-20 mA
Protection class IP 67

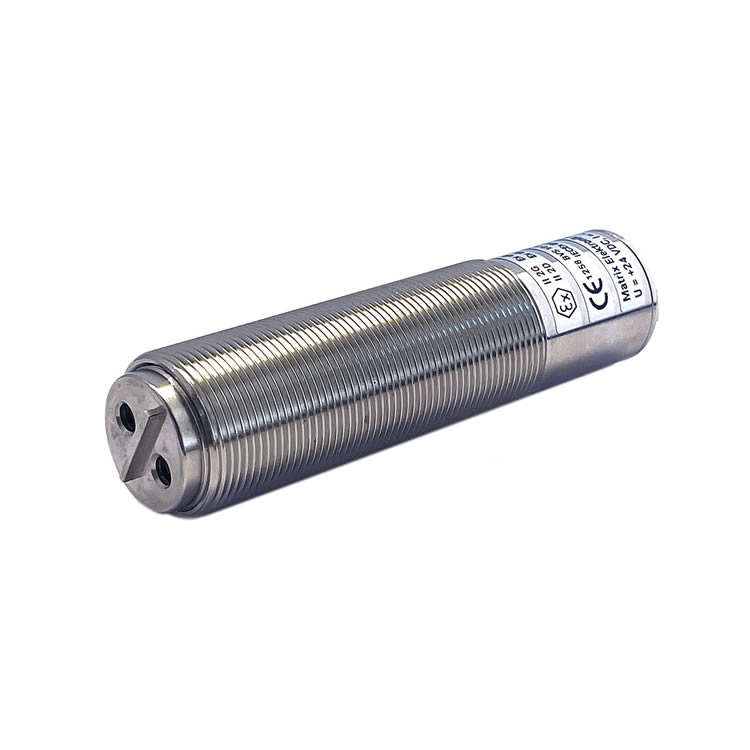

Infrared distance sensor TDD-BAD-BBB-TF:
Highlights
Infrared light 860nm with a measuring range from 100 mm to 1000 mm
Operates independently of the reflectance of the object being measured
Explosion-proof, rugged and compact M30 metal housing in flameproof enclosure Ex „d“
Approved for operation in Ex zones 1, 2, 21, 22 (gas and dust Ex)
Optical power limitation - sensors may radiate in zones 0 and 20
Versions with switching function and analogue output 4-20 mA
Protection class IP 67
Applications
Distance measurements up to 1000 mm
TDD Series:
TDD-BAD-BBB-TF
TDD-BAC-BBA-TF
TDD-BAD-BBN-TF
TDD-BAA-BBA-TF
