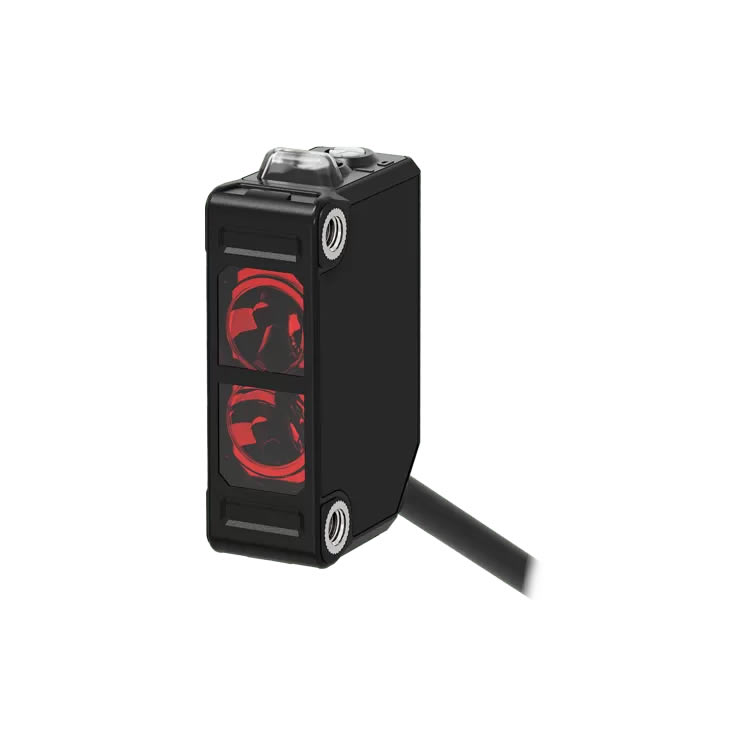

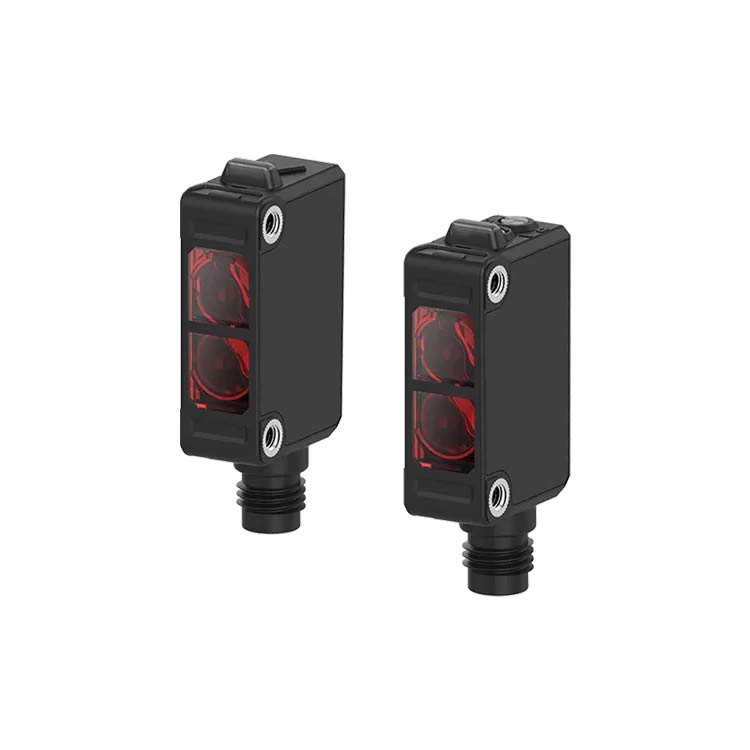

BJX Series
Compact Long Distance Photoelectric Sensors
The BJX series compact photoelectric sensors feature high performance lens with long sensing distance up to 30 m. The sensors also offer excellent noise immunity and minimal influence from ambient light for accurate and reliable presence detection. Mutual interference prevention function allows tight adjacent installation of multiple sensors and MSR (mirror surface rejection) function allows detection of highly reflective targets.
Applications:
Printing Machines
Photoelectric sensors used to detect the amount of paper loaded on the tray of industrial printing machines.
BJX15M-TDT-C-P
Sensing type : Through-beam type
Sensing distance : 15m
Sensing target : Opaque material of min. Ø15mm
Light source : Infrared LED(850nm)
Response time : Max. 1ms
BJX Series:
BJX15M-TDT-P、BJX15M-TDT-C-P、BJX15M-TDT、BJX3M-PDT-P、BJX3M-PDT、BJX3M-PDT-C、BJX3M-PDT-C-P、BJX30M-TDT-P、BJX30M-TDT、BJX300-DDT-P、BJX300-DDT-C、BJX300-DDT-C-P、BJX300-DDT、BJX1M-DDT-P、BJX1M-DDT-C-P、BJX1M-DDT-C、BJX1M-DDT、BJX10M-TDT-P、BJX10M-TDT、BJX100-DDT-P、BJX100-DDT-C-P、BJX100-DDT、BJX100-DDT-C、BJX10M-TDT-C-P、BJX30M-TDT-C、BJX30M-TDT-C-P、BJX15M-TDT-C、BJX10M-TDT-C
