Special Features
• Non-contacting, magnetic technology
• Measuring range up to 360°
• Available with push-on coupling or marked shaft
• Simple mounting
• Protection class IP54, IP65, IP67
• Long life
• Very small hysteresis
• High resolution 12 bits
• Linearity < ±0.5 %
• Other configurations see separate data sheets
Applications
• Manufacturing Engineering (textile machinery, packaging machinery, sheet metal and wire machinery)
• Automation technology
• Medical Engineering

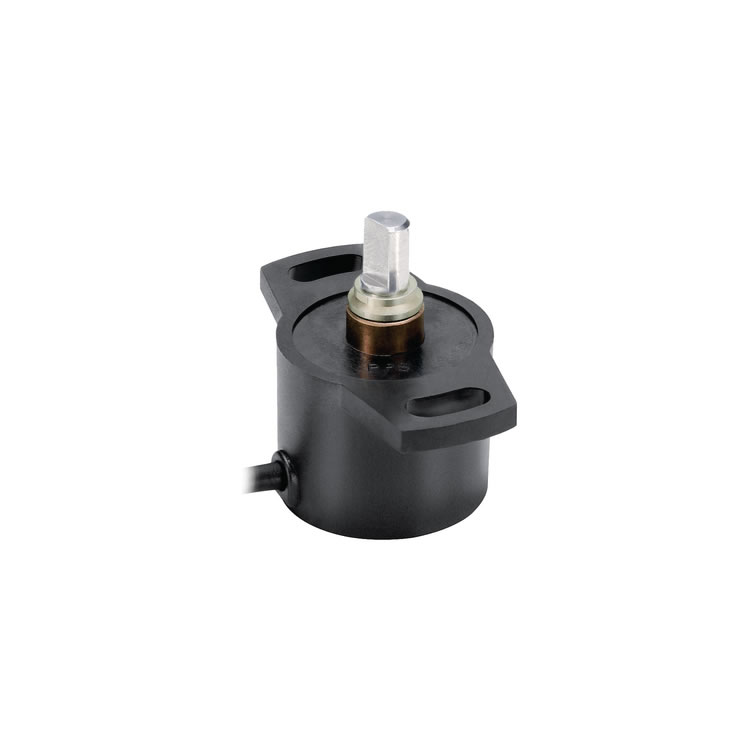

The RSC-2800 sensor utilizes a contactless magnetic measurement technology to determine the measured angle. Unlike conventional Hall sensors, the orientation of the magnetic field is measured. The position information corresponding to the angular position is transmitted via a variety of analog and digital interfaces (see separate data sheets).
The housing is made of a special high grade temperature-resistant plastic material. Elongated slots allow simplicity in mounting together with ease of mechanical adjustment.
Three shaft options are available, including a push-on coupling option that ensures fast and simple installation.
