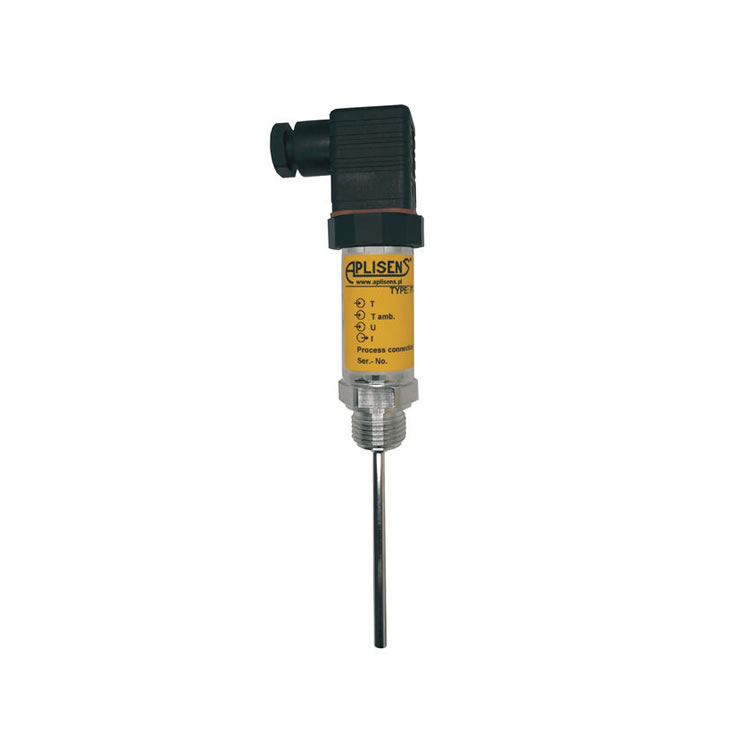

Temperature transmitter type PT-25 is designed for temperature measurement of liquid and gaseous media in range from -50 to +100°C. Resistance signal from RTD element is converted to standard 4…20mA output signal. Casing of transmitter and wetted parts are made in stainless steel. Transmitter is manufactured in two versions: with removable measuring insert and not removable measuring insert which has additional protection against vibrations. Available electrical connections are angular connector DIN EN 175301-803 or connector M12x1.
Technical data
| G1/2 |
| DIN EN 175301-803-A |
| IP65 |
| 50 mm |
| PT25/PD/50/6/G1/2"/0..+50C/NR |
| Stainless steel AISI 304 |
| Stainless steel 316L |
| 4-20 mA |
| 35 V DC |
| 8 V DC |
| 50 °C |
| 0 °C |
