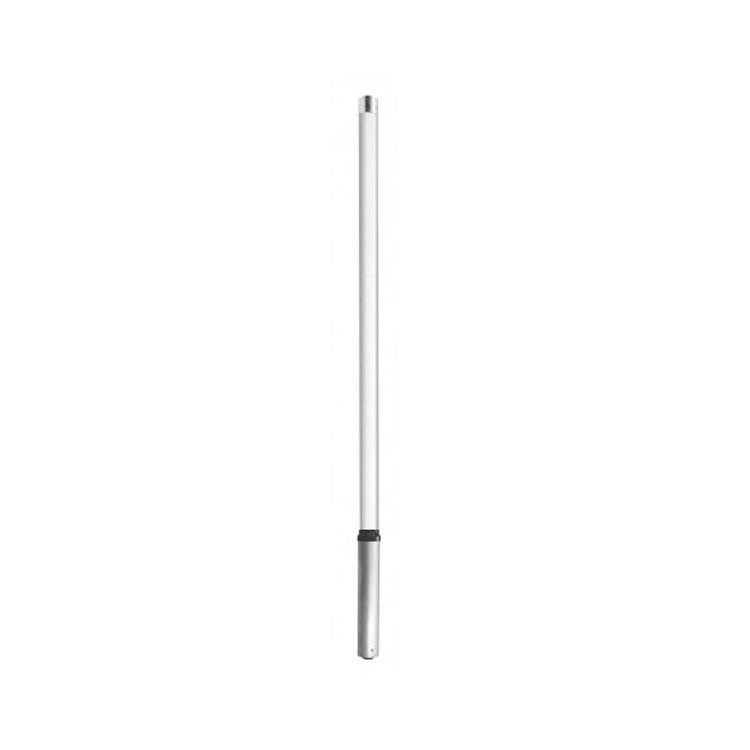

Model 4223.03-355-T0
Frequency 340 - 370 MHz
Max. Input Power 300 W
Omni Deviation < ± 1 dB
Polarisation Vertical
Peak Instantaneous Power (PIP) 25 kW
3 dB Beamwidth, E-Plane 35° ±1°
3 dB Beamwidth, H-Plane Omnidirectional
Impedance 50 Ω
Gain 3 dBd (5.2 dBi)
VSWR < 1.5:1
Passive Intermodulation -153 dBc (3rd Order, 2 x Tx @ 43 dBm)
(PIM value not guaranteed for N connector version)
Lightning Protection Lightning current handling capability :
200 kA According to EN 62305-1 (Test pulse 10/350 μs)
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
