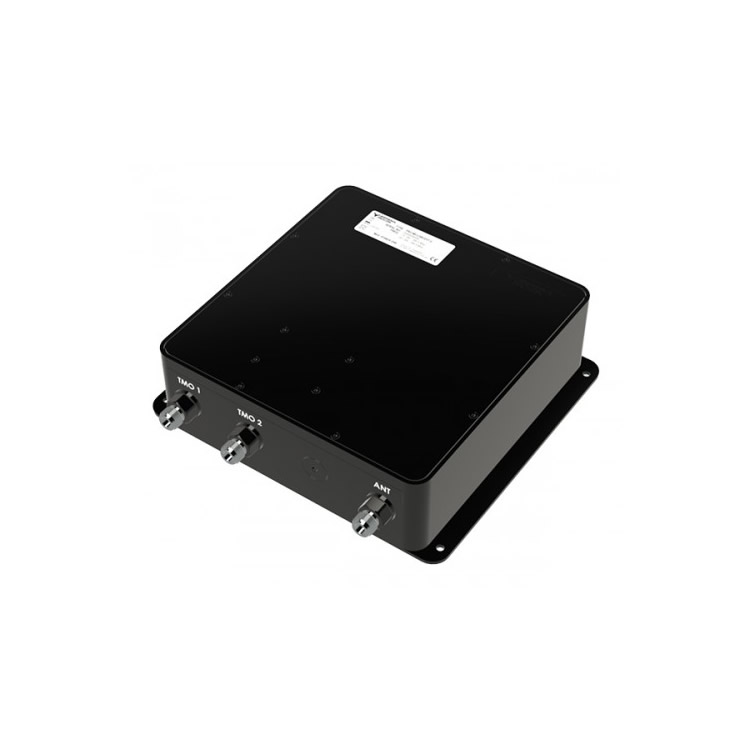

Model: PRO-MCU380-EXT-2
Frequency Range:
Transmit: 380 - 386.5 MHz /
Receive: 390 - 396.5 MHz
Maximum Input Power: 25 W per port
Insertion Loss from Transmit to Antenna (Tx-Ant): < 6.6 dB (Typical: 6.2 dB)
Insertion Loss from Antenna to Receive (Rx-Ant): < 6.6 dB (Typical: 6.2 dB)
Isolation Between Transmit and Receive (TRx): ≥ 60 dB
Voltage Standing Wave Ratio (VSWR): < 1.5:1
Group Delay Variation:
Transmit End (TX-Ant): < 120 nanoseconds
Receive End (RX-Ant): < 150 nanoseconds
Number of Channels: 2 TMO (Transmit/Receive)
