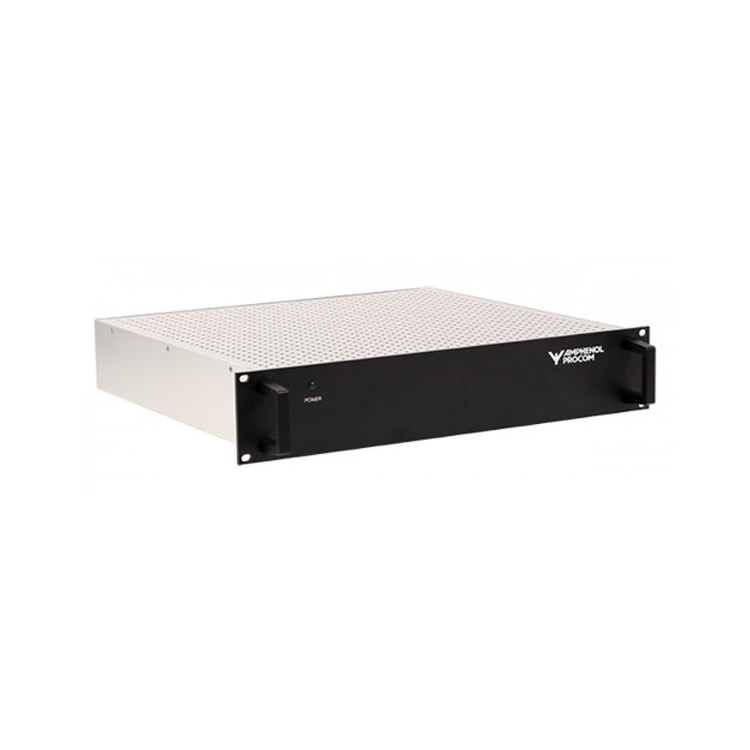

Model: PRO-HDAR150-2
Frequency:
l: 136 - 156 MHz
h: 152 - 175 MHz
Max. Input Power: 50 W (per channel)
Max. Tx-Tx Spacing, Δ Tx: 1.5 MHz
Min. Tx-Rx Spacing: 4 MHz
Isolation Rx on Frequency Tx:
Tx - Tx spacing < 0.5 MHz: > 80 dB
Tx - Tx spacing > 0.5 MHz: > 60 dB
Insertion Loss Tx Path: < 5.0 dB
Impedance: 50 Ω
Ant-Tx Isolation: > 40 dB @ 25 °C
Gain: Rx PATH: 1 dB ±1 dB (factory set)
Isolation Rx-Rx: > 20 dB
Isolation Tx-Tx: > 70 dB
VSWR: ≤ 1.5:1
Isolation Tx on Frequency Rx:
Rx - Rx spacing < 0.5 MHz: > 80 dB
Rx - Rx spacing > 0.5 MHz: > 60 dB
LNA Noise Figure: < 3.5 dB
Number of Channels: 2
