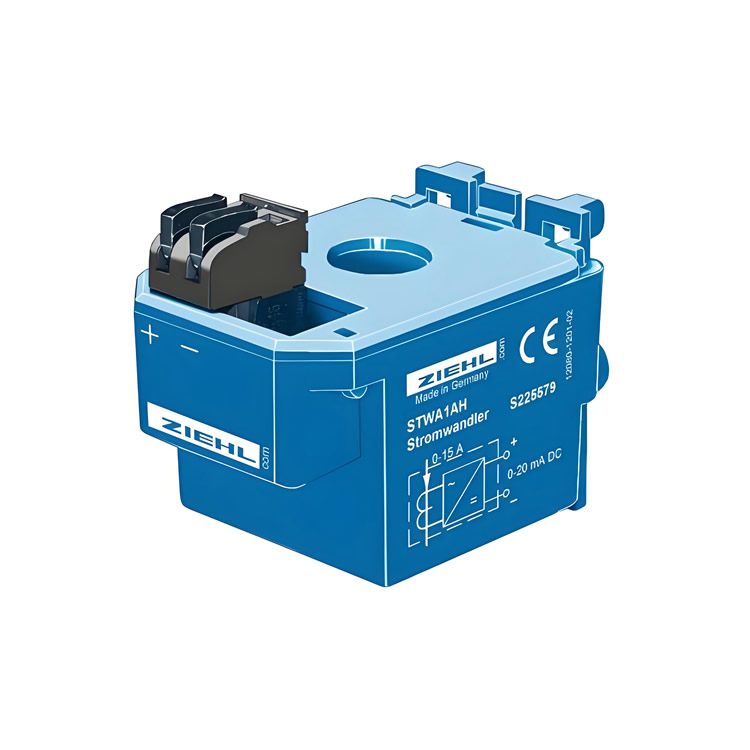

Input Measurement Range AC 0...15 A (range can be reduced by multi-turn pass-through, e.g., 3 turns correspond to 0...5 A)
Output Signal DC 0...20 mA (isolated)
Load Resistance 50...300 Ω
Response Time < 0.5 s
Basic Error < 5% FS (with 100 Ω load)
< 7% FS (50...200 Ω)
< 9% FS (≤300 Ω)
Error Due to Load Effect +5%/100 Ω (maximum 500 Ω)
Temperature Coefficient < 0.06 %/K
Ripple (50 Hz) < 2.5 % (with 300 Ω)
< 4.5 % (with 100 Ω)
< 7.5 % (with 50 Ω)
Rated Frequency 50 Hz
Operating Frequency Range 30...400 Hz
Frequency Error ≤ 0.2 %/Hz
Overload Capacity 100 A continuous
300 A / 10 s
Ambient Temperature Range 0...55 °C
Enclosure Model Design H
Dimensions (h x w x d) 50 x 36 x 56 mm
Conductor Aperture 11 mm
Weight Approximately 90 g
Mounting Method DIN rail mounting or screw mounting
Electrical Connection Screwless plug-in terminals
