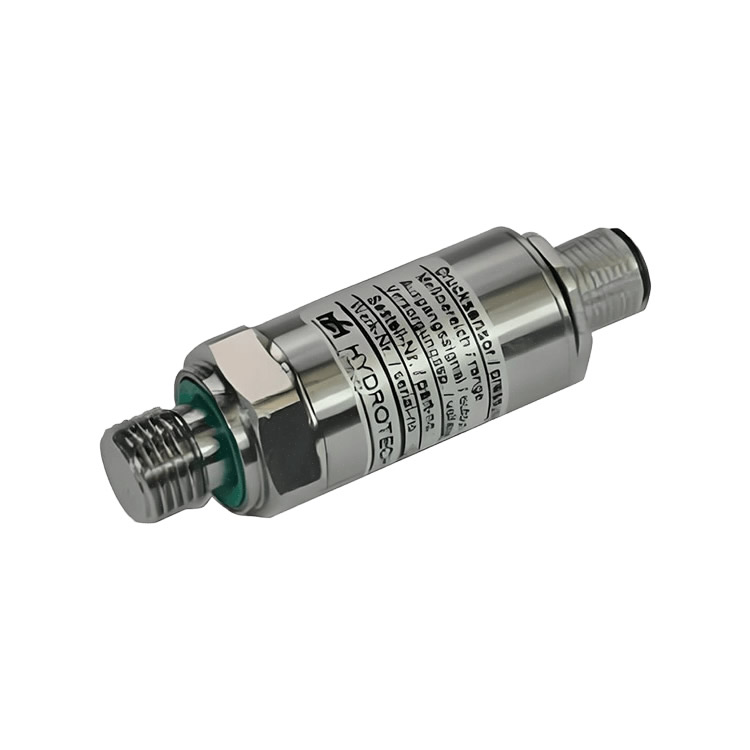

The Hydrotechnik 3403-16-I5.39S pressure sensor from Germany belongs to the HT-PD PR130 series. This series is renowned for its compact size, good accuracy, lightweight design, and wide measurement range coverage.
Application Areas
With its excellent reliability, flexibility, and versatility, it is widely applicable in numerous industrial fields such as petroleum, chemical engineering, metallurgy, electric power, hydropower, food, pharmaceuticals, and heavy industry. It is used to measure the pressure of gases, steam, and liquids, meeting the pressure measurement and control requirements in industrial process sites.
Performance Parameters
Measurement Range: It offers 9 standard pressure ranges, from -1...6 bar to 0...1000 bar, enabling it to handle pressure measurements under various operating conditions.
Accuracy: It features an accuracy of ±0.5%, allowing for relatively precise acquisition of pressure data.
Connection Specifications: It employs a G1/4"A Form E thread, paired with fluororubber seals to ensure the sealing and stability of the connection. The electrical connector is of M12x1 specification.
Output Signal: It provides output options of 4-20mA or 0-10V, facilitating connection with different control systems.
Wetted Parts Material: The wetted parts are made of stainless steel 17-4PH and SS304, which offer good corrosion resistance and can adapt to measurement environments involving various fluid media.
