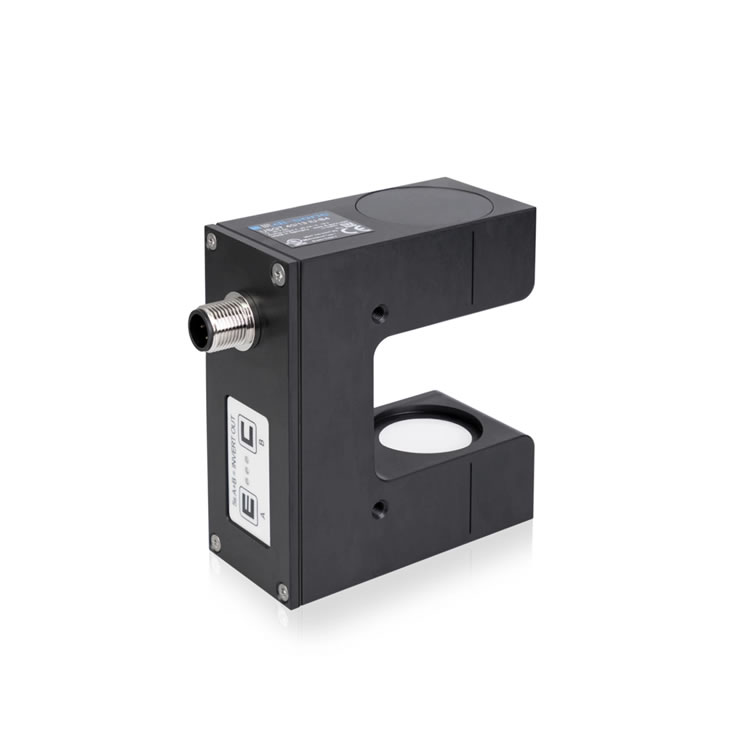

The di-soric USGT 60/8 IU-B4 is a high-precision ultrasonic slot sensor manufactured in Germany, designed for precise edge positioning of films and paper in printing and packaging industries. Based on the ultrasonic through-beam principle, it achieves a resolution of 0.1 mm, a typical measuring range of 8 mm, and a repeatability of ±0.1 mm, making it suitable for edge control of transparent, opaque, and reflective web materials.
Electronically, it operates on 12-30V DC with a maximum no-load current of 40mA (at 24V DC), offering analog outputs of 0-10V or 4-20mA. Mechanically, it features a 60mm fork opening and a black anodized aluminum housing for durability. With an operating temperature range of 0-60°C, IP67 protection, and high resistance to dirt, it provides a wide linear analog range and exceptional repeatability, ideal for industrial edge control applications.
