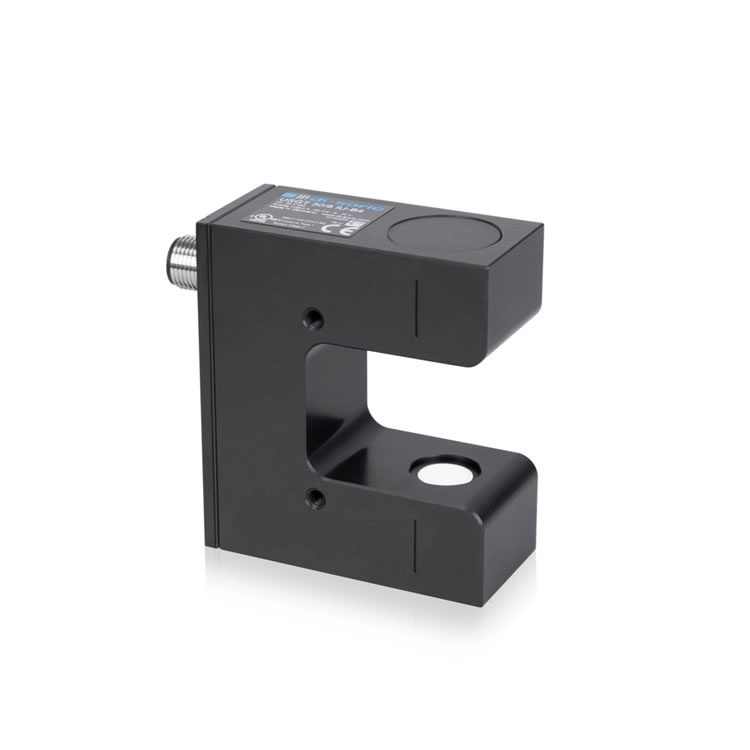

The di-soric USGT 70/13 IU-B4 is a high-precision ultrasonic slot sensor from Germany, designed for precise edge positioning of films and paper in printing and packaging industries. Based on the ultrasonic through-beam principle, it delivers 0.1mm resolution, a typical measuring range of 13mm, and ±0.1mm repeatability, suitable for edge control of transparent, opaque, and reflective web materials.
It operates on 12-30V DC with a maximum no-load current of 40mA (at 24V DC), 10% ripple, 500V dielectric strength, and offers analog outputs of 0-10V or 4-20mA. Mechanically, it features a 70mm fork opening and a black anodized aluminum housing. With an operating temperature of 0-60°C, IP67 protection, and high dirt resistance, it provides a wide linear analog range and exceptional repeatability, making it ideal for industrial edge control applications.
