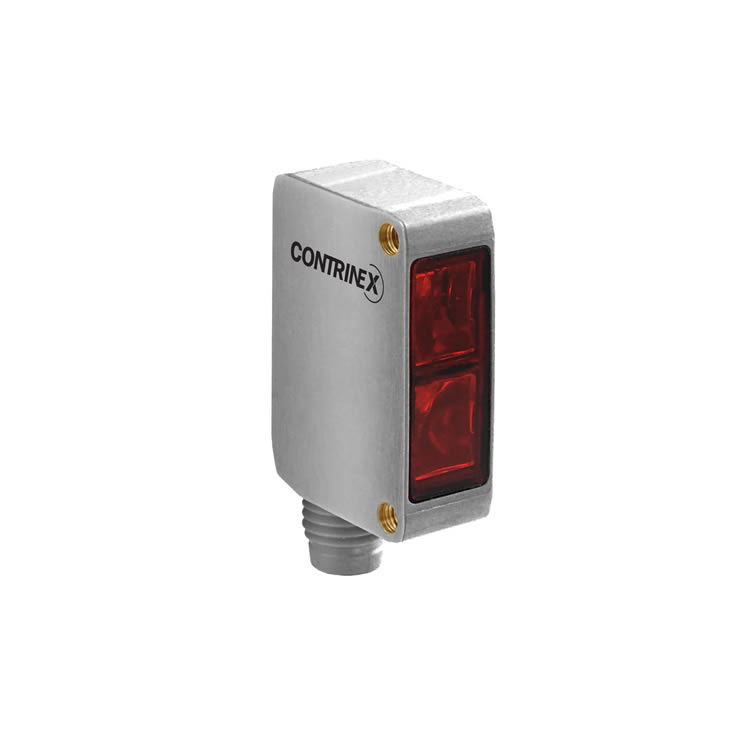

Contrinex ISLR-C23MP-NMS-AE: Basic smart through-beam emitter, C23 stainless steel housing (IP67), 0–25000 mm range, red LED 630 nm, PNP, IO-Link, M12 4-pin.
Connection and Mounting: M8 4-pin
Output: OSS1/IO-Link + Test input
Polarity: PNP
Operating range: 0...25000 mm
Switching frequency max.: 1000 Hz
Supply voltage: 10...30
Sensitivity adjustment: No
Housing size [mm]: 21.5 x 33 (C23)
Enclosure rating: IP 68 / IP 69K
Housing material: Stainless-steel V2A
Sensitivity Range Adjustm: 30...300 mm
Temperature range: -25...+65°C
Light source: LED, red 630 nm
Interface: IO-Link
Operating principle: Through-beam
Sensing range max.: 0...30000 mm
