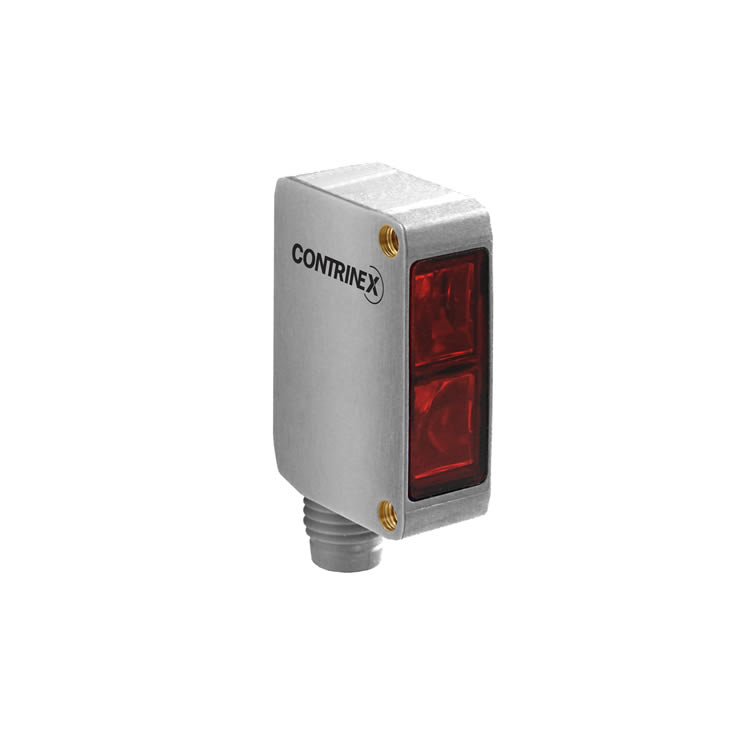

Contrinex ISHR-C23MP-NMS-A0: Smart background-suppression photoelectric sensor, C23 stainless steel housing (IP67/68/69K), 10–300 mm range, red LED 640 nm, PNP, IO-Link, M8 4-pin.
Operating range 10...300 mm
Switching frequency max. 500 Hz
Supply voltage 10...30
Polarity PNP
Output OSS1/IO-Link + OSS2/INPUT
Sensitivity adjustment IO-Link only
Connection M8 4-pin
Housing size [mm] 21.5 x 33 (C23)
Enclosure rating IP 68 / IP 69K
Housing material Stainless-steel V2A
Sensitivity Range Adjustment 30...300 mm
Temperature range -25...+65°C
Light source Pinpoint LED, red 640 nm
Interface IO-Link
Operating principle Background suppression
Sensing range max. 10...330 mm
