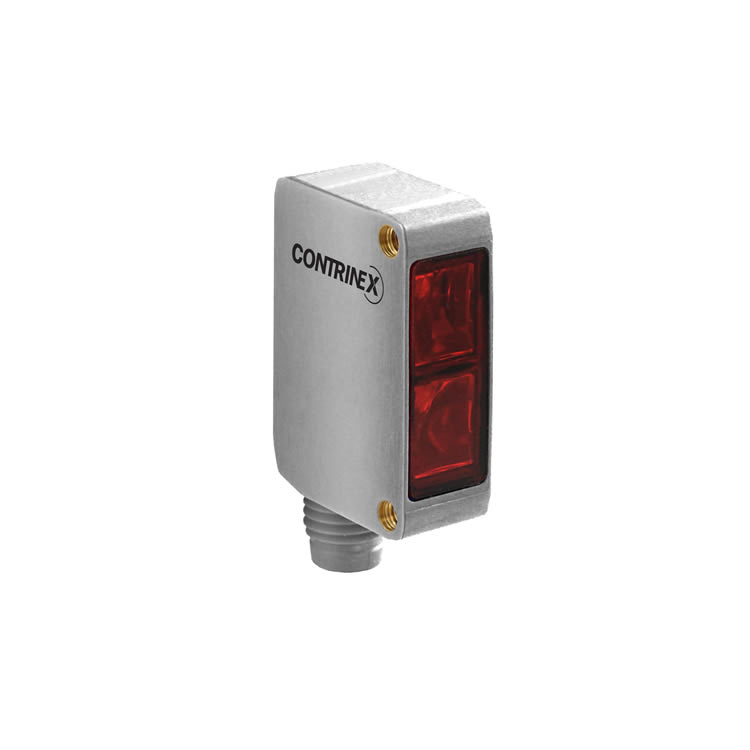

Contrinex ISTR-C23MP-NMS-A0: Smart transparent-object photoelectric sensor with C23 stainless steel housing, IP67/68/69K rating, red LED, PNP output, IO-Link interface and M8 4-pin connection.
Operating range 5...1200 mm
Switching frequency max. 1000 Hz
Supply voltage 10...30
Polarity PNP
Output OSS1/IO-Link + OSS2/INPUT
Sensitivity adjustment IO-Link only
Connection M8 4-pin
Housing size [mm] 21.5 x 33 (C23)
Enclosure rating IP 68 / IP 69K
Housing material Stainless-steel V2A
Sensitivity Range Adjustment 30...1500 mm
Temperature range -25...+65°C
Light source LED, red 630 nm
Interface IO-Link
Operating principle Diffuse
Sensing range max. 5...1350 mm
