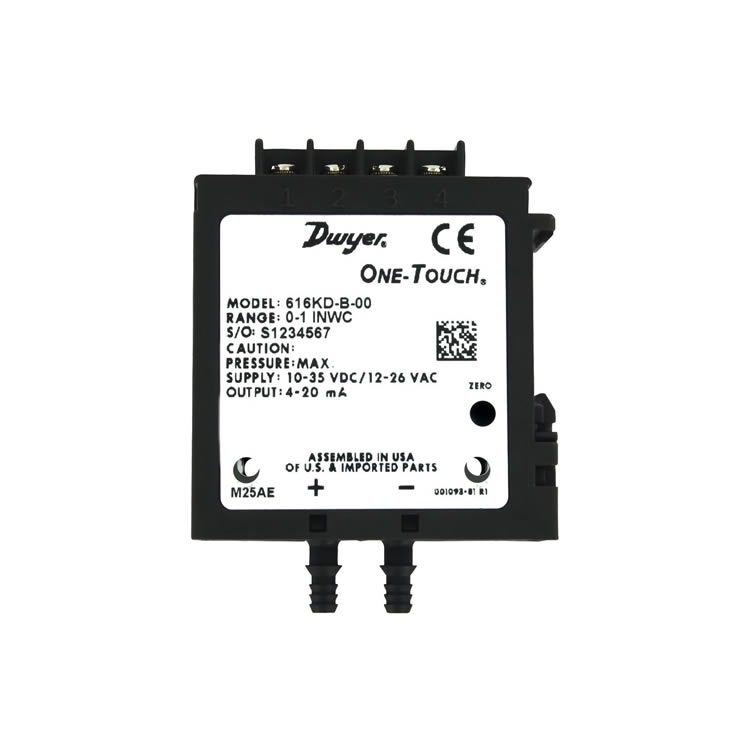

Dwyer 616KD-B-54 Pressure Transmitter
616KD-54 is a series 616KD differential pressure transmitter with One-Touch® digital push- button calibration technology is designed for simplicity, making it the ideal choice for installers and maintenance professionals. This instrument not only alleviate cumbersome turn pots typically found in most transmitters, but eliminate entirely the need to span the instruments during calibration. With a single digital push-button, both ZERO AND SPAN are calibrated properly, nothing else is required. No additional reference pressure sources or separate calibration devices are necessary. Typical applications include air handlers, variable air volume, duct pressure and filter monitoring.
Differential pressure transmitter range from 250-0-250PA, 4-20mA DP
Simple calibration push-button sets back zero and span, saving time installing and over service life
Cost effective, compact device suitable for OEM applications where space, simplicity, value are key
Ranges and accuracy selection cover a range of applications minimizing components
Barbed, dual size to fit 1/8" and 3/16" (3mm and 5mm) ID rubber or vinyl tubing
NEMA 1 (IP20), tested to UL 2043 for plenum applications
Vertical with pressure connections pointing down mounting orientation
Screw-type terminal block electrical connections
Temperature limits from 0 to 140°F (-17.8 to 60°C) and 2.0% FS accuracy
CE compliance
