Dwyer 626-09-GH-P3-E4-S1 Pressure Transducer-Sensor-Effsen Automation

Dwyer 626-09-GH-P3-E4-S1 Pressure Transducer

Date: 2025-05-07

Models: 626-09-GH-P3-E4-S1

Price: Phone or Email Inquiry

Do you have any questions about this product? Please contact our customer service by phone number +852 30623028 Or Quick Inquiry Form.

Product Overview

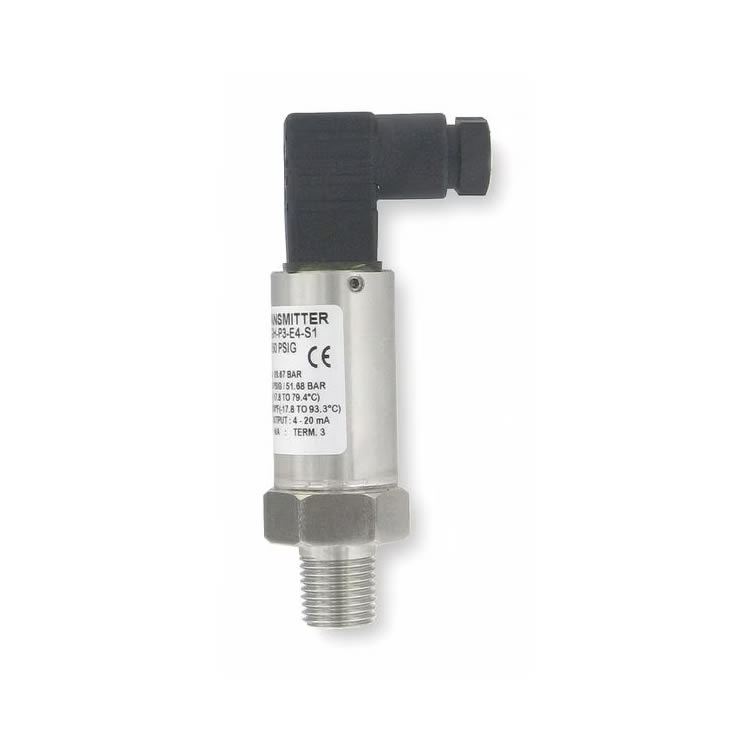

Dwyer 626-09-GH-P3-E4-S1 Pressure Transducer

Pressure Transmitter, Minimum Pressure 0 psi, Maximum Pressure 50 psi, Electrical Connections 4-Pin DIN 43650 Form C Connector, Output 4 to 20mA DC, Accuracy +/-0.25 Percent of Full Scale, Number of Wires 2, Process Connection Gender Male, Process Connection Size 1/4 in, Process Connection Type NPT, Power Required 10 to 30V DC, NEMA Rating NEMA 4X, IP Rating IP66, Series 626, Maximum Operating Temperature 200 Degrees F, Minimum Operating Temperature 0 Degrees F, Housing Material Stainless Steel

Dimensions

Manufacturers Warranty Length	1 yr
Process Connection Size - Transmitter	1/4 in
Overall Length	5.5 in
Process Connection Size	1/4 in
Overall Width	1.281 in
Overall Height	3.5 in

Details

Item	Pressure Transmitter
Series	626
Output	4 to 20mA DC
Accuracy	+/-0.25%
Electrical Connections	4-Pin DIN 43650 Form C Connector
Features	Protection in Harsh Environments, Shock and Vibration Resistance
Housing	Stainless Steel
Power Required	10 to 30V DC
Operating Temp. - Transmitter	0 Degrees to 200 Degrees F
Loop Resistance	0 to 1300 ohms
Wiring Entry - Transmitter	1/2 in FNPT
Power Required - Transmitters	13 to 30V DC
Max. Pressure (PSI)	100 psi
Wetted Materials	316 SS and 316L SS
Wetted Materials - Transmitters	316 Stainless Steel, 316L Stainless Steel
Output - Transmitter	4 to 20mA DC
Range	0 to 50 psi
Range Values - Transmitter	0 to 50
Process Connection Type - Transmitter	MNPT
Thermal Error	+/-0.02%
Includes	Instructions
NEMA Rating	NEMA 4X
Range Units - Transmitter	psi
Accuracy - Transmitter	+/-0.25%
Operating Temp.	0 to 200 F
Electrical Connections - Transmitter	Mini-Hirschmann Connector
Transmitter Type	Pressure Transmitter
Housing Material	Stainless Steel
Number of Wires	2
Intrinsically Safe	No
Standards	CE, NSF, UL Listed
Maximum Pressure	50 psi
Process Connection Type	NPT
Pressure Units	psig
Maximum Operating Temperature	200 Degrees F
Process Connection Gender	Male
Maximum Loop Resistance	0 to 1,000 Ohm Max
Type of Pressure	Gauge
Weight	10 oz
Explosion/Fire Proof	No
For Use With Media Type	Compressors, Hydraulic, Industrial Process Monitoring, Irrigation System Pressure, Pumping Systems
NIST Traceable Certificate	No
Minimum Operating Temperature	0 Degrees F
Overpressure	300 psig
Minimum Pressure	0 psi
Response Time	300 msec
IP Rating	IP66
