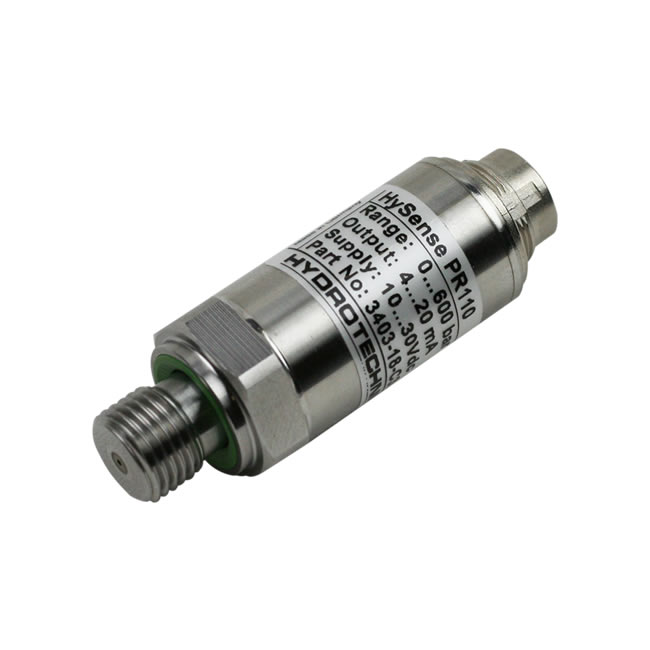

Hydrotechnik 3403-15-C4.37 HT-PD Pressure sensor
The HySense PR110 (formerly known as HT-PD) is our most popular pressure sensor for mobile hydraulic testing applications. Also popular in stationary industrial applications, it is available from -1...1000 bar and comes with a 5 pin connection.
Measuring ranges: from -1...1000 bar.
Mechanical connection: G1/4".
Signal output: 0...20mA, 4...20mA, 0...10V & 0.2...1.6kHz options.
Electrical connection: M16x0.75 6-pin.
Accuracy: <±0.5%.
5-point calibration certificate available on request.
| PR100 | Part Code by Signal Output | |||
|---|---|---|---|---|
| Measuring Range (bar) | 0...10V | 2 wire 4...20mA | 3 wire 0...20mA | 0.2...1.6kHz |
| -1...6 | 3403-32-C3.39 | 3403-32-C3.37 | 3403-32-C3.33 | 3403-32-C3.41 |
| 0...60 | 3403-21-C3.39 | 3403-21-C3.37 | 3403-21-C3.33 | 3403-21-C3.41 |
| 0...250 | 3403-17-C3.39 | 3403-17-C3.37 | 3403-17-C3.33 | 3403-17-C3.41 |
| 0...400 | 3403-15-C3.39 | 3403-15-C3.37 | 3403-15-C3.33 | 3403-15-C3.41 |
| 0...600 | 3403-18-C3.39 | 3403-18-C3.37 | 3403-18-C3.33 | 3403-18-C3.41 |
| 0...1000 | 3403-29-C3.39 | 3403-29-C3.37 | 3403-29-C3.33 | 3403-29-C3.41 |
