Overview

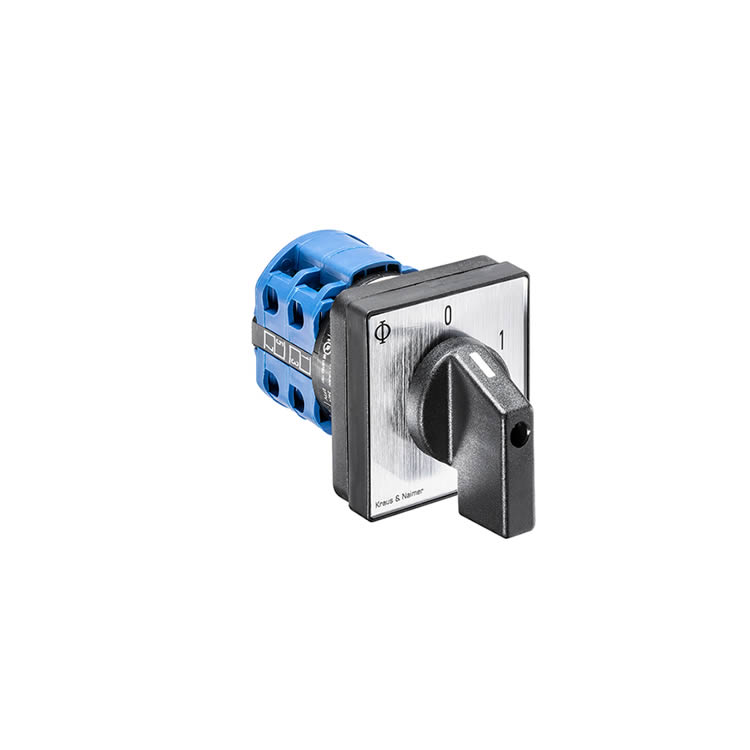

Compact 20 A cam-operated control switch for industrial panels. 64 × 64 mm mounting, 690 V insulation, silver alloy double-break contacts, up to 24 positions. Ideal for mode selection, signal switching, and motor control.
Features
Compact, space-saving design.
Silver alloy double-break contacts.
Up to 24 switching positions.
64 × 64 mm panel cut-out, screw terminals.
-25°C to +60°C operating range.
Optional gold-plated contacts.
Kraus & Naimer A11.PC2202.KD1.G251 Blue Line Cam-Operated Switch
| Item | Specification |
|---|---|
| Brand | Kraus & Naimer (Austria) |
| Model | A11.PC2202.KD1.G251 |
| Material No. | 70102479 |
| Series | BLUE LINE A11 |
| Origin | Made in Austria |
| Rated Insulation Voltage Ui | 690 V AC/DC |
| Rated Impulse Withstand Voltage Uimp | 6 kV |
| Rated Continuous Current Iu/Ith | 20 A |
| Life | 50,000 operations |
| Front Plate | S1, 64 × 64 mm |
| Certification | CE, UKCA |
Model Code
A11: Compact cam switch, shallow depth, up to 24 positions.
PC2202: Switching logic code.
KD1: Standard square plate + black handle.
G251: Additional configuration (locking / terminals / mounting).
