Overview

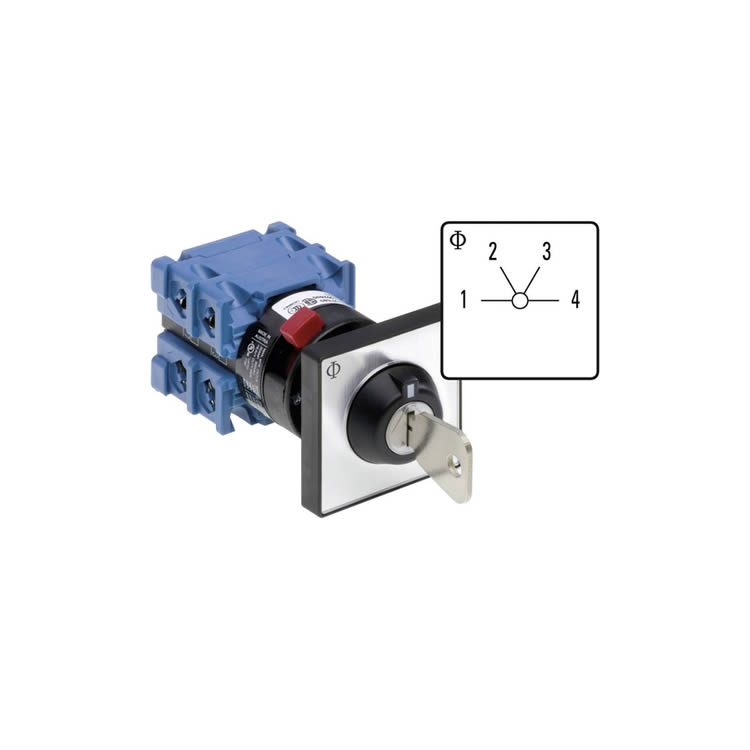

K&N A11 cam rotary switch, 20A/690V, 7.5kW AC-23A. Double-break contacts, IP42, 64×64 mm panel mount for motor & industrial control.
General Information
Brand: Kraus & Naimer (Austria, K&N)
Model: A11.PC2201.KD1
Material No.: 70159568
Product Series: A11 (Blue-Line, S1 size, 64 × 64 mm front plate)
Product Type: Cam-operated rotary switch

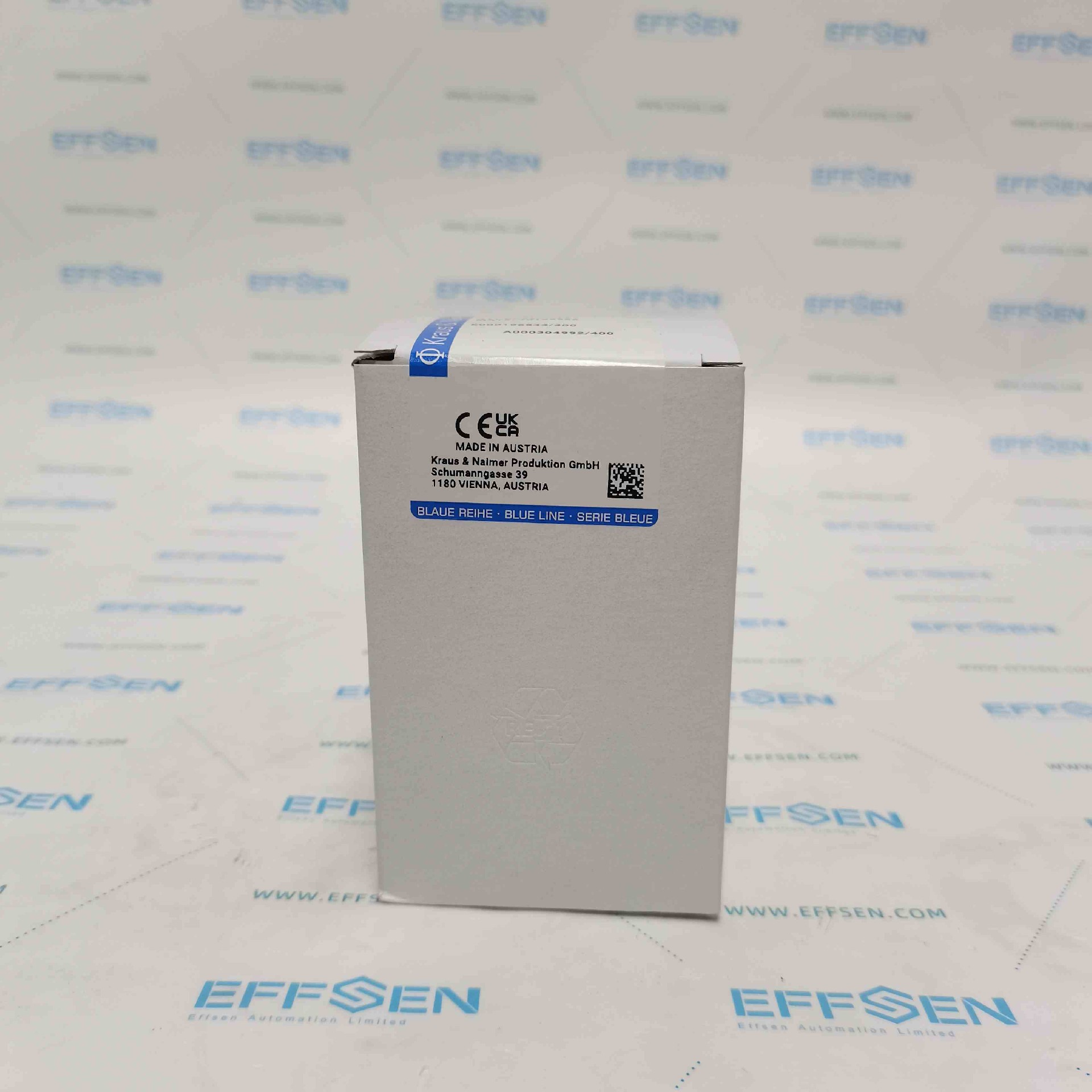

Country of Origin: Austria

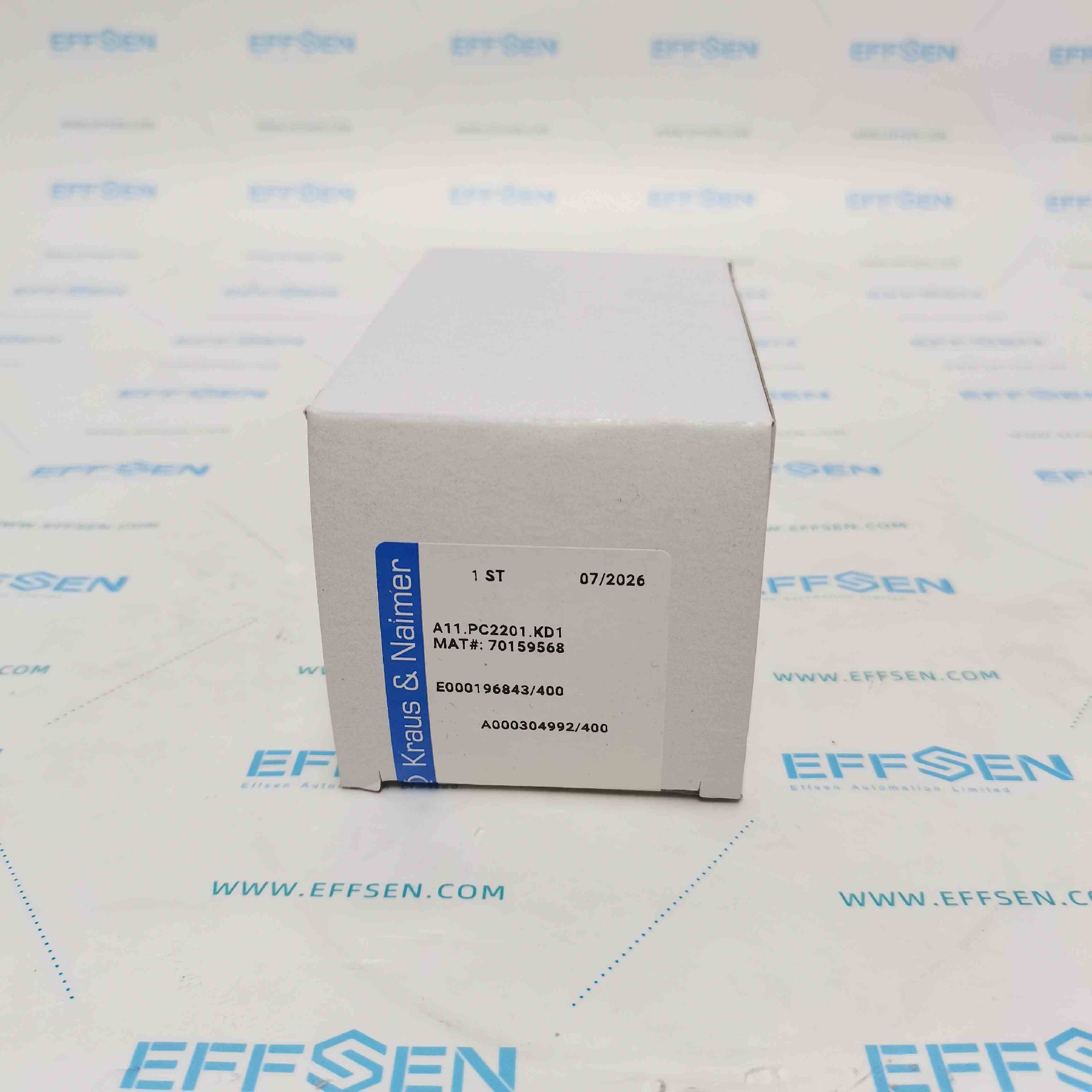

Label Production Date: 07/2026
Internal Order No.: E000196843/400, A000304992/400
Technical Specifications
Conventional Thermal Current (Ith): 20 A
Rated Insulation Voltage (Ui): 690 V
AC-23A (380/440 V): 7.5 kW, suitable for direct switching of low-power motors
Front Plate Dimensions: 64 × 64 mm, standard panel cut-out mounting
Contact Configuration: Double-break silver alloy bridge contacts; self-cleaning cross-wire contacts for stable contact performance
Protection: IP42 at the front plate
Standards: IEC 60947-3, CE certified
Model Code Breakdown
A11: Series designation, 20 A rating
PC2201: Cam contact program code, defining fixed switching sequence and number of positions
KD1: Handle / front plate configuration code
