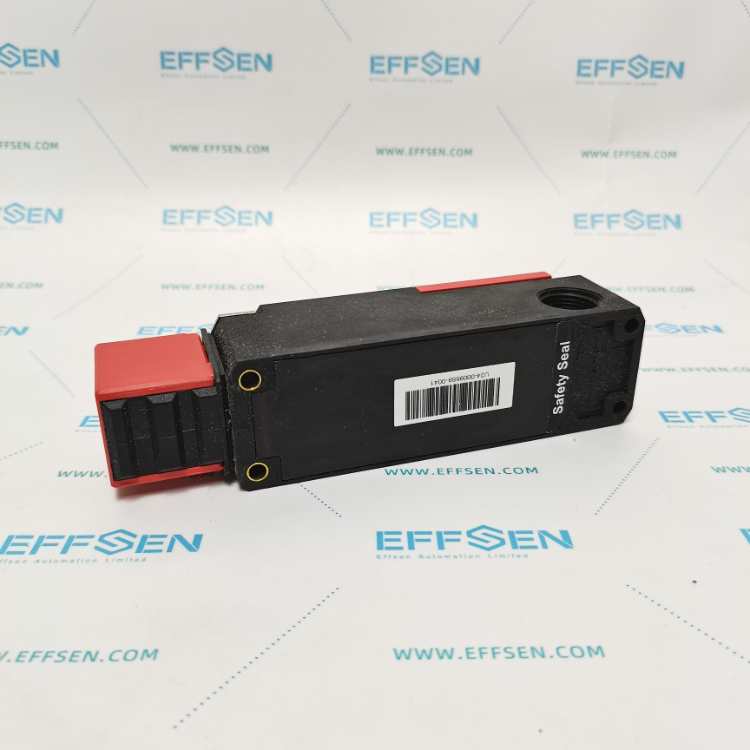

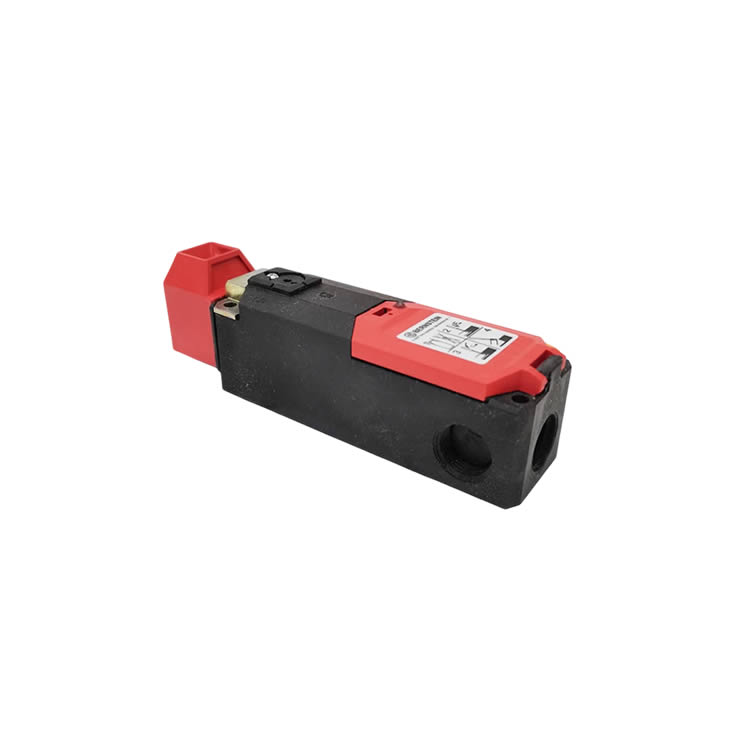

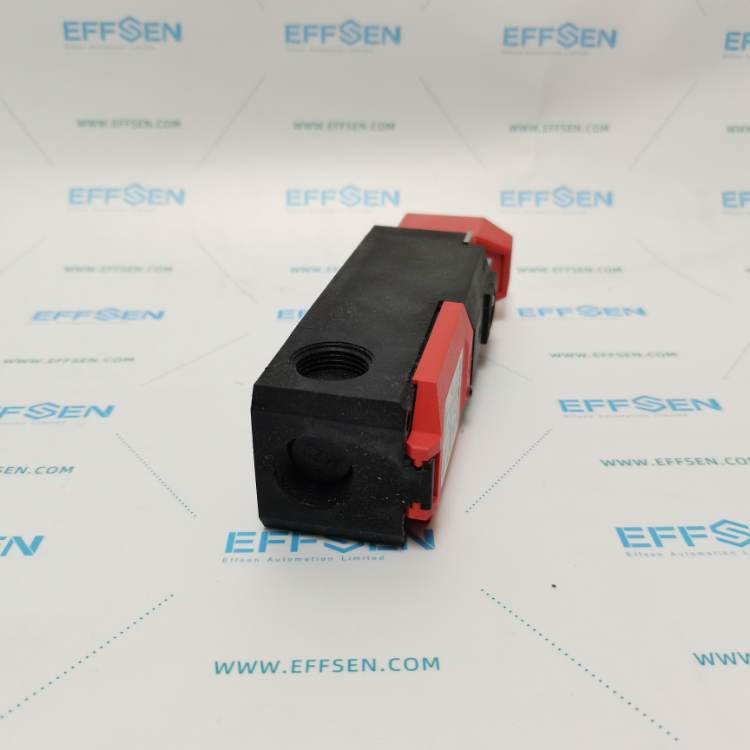

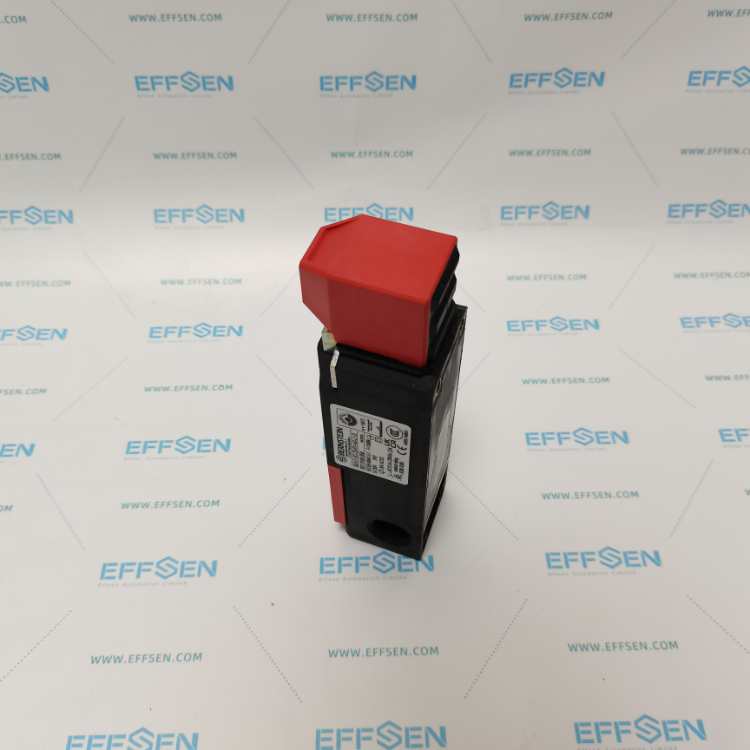

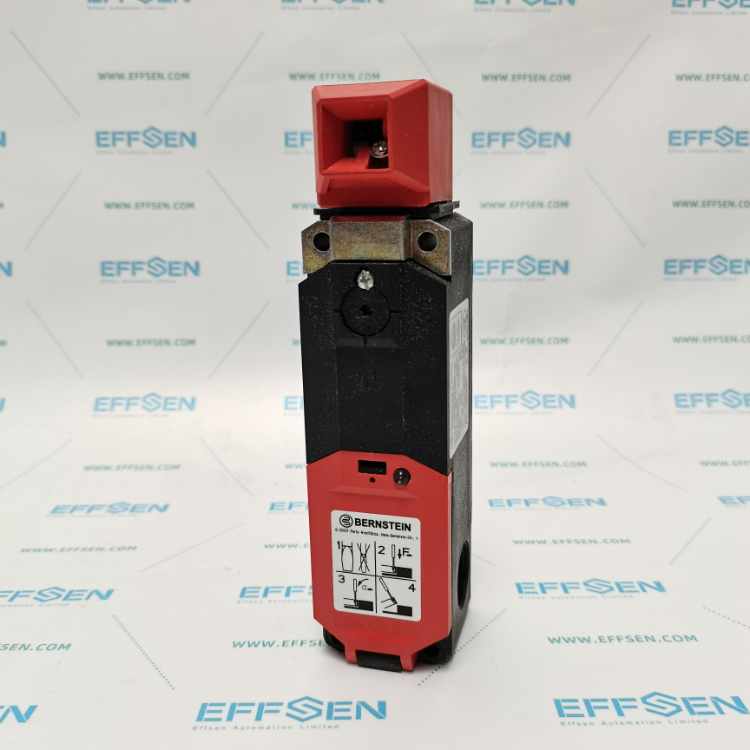

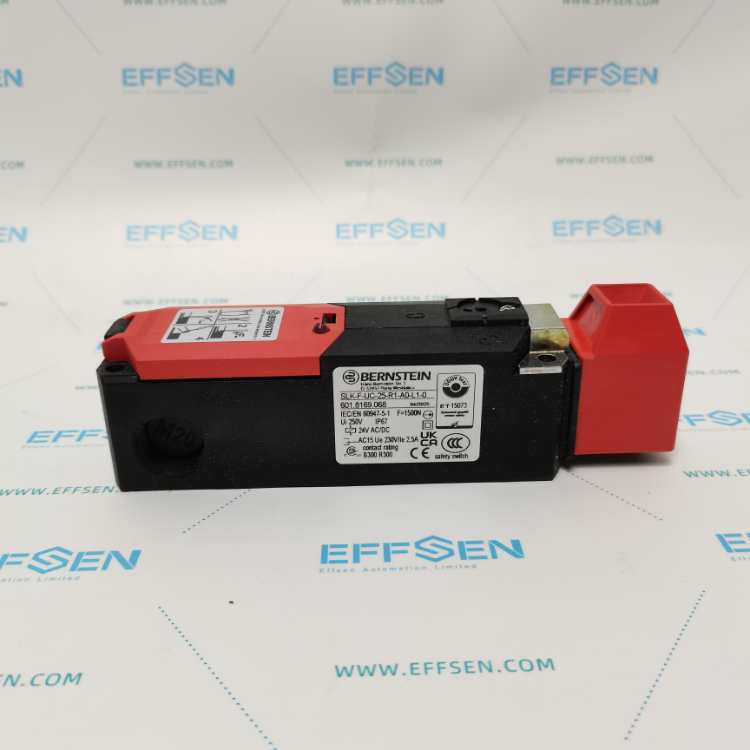

Bernstein SLK-F-UC-25-R1-A0-L1-0 Safety Switch
Brand: BERNSTEIN AG
Model: SLK-F-UC-25-R1-A0-L1-0
The Bernstein SLK-F-UC-25-R1-A0-L1-0 is a safety switch with separate actuator and guard locking, designed for position monitoring of movable guards. It features 4 NC slow-action contacts, a 24 V AC/DC electromagnet for locking, and a spring-force interlocking principle. The actuating head can be rotated to achieve 4 different actuating directions. Housed in glass fibre reinforced thermoplastic (UL 94-V0) with IP67 protection, it is suitable for harsh industrial environments.
| Item | Specification |
|---|---|
| Rated Insulation Voltage | 250 V |
| Conv. Thermal Current | 5 A |
| Operating Voltage | 24 V AC / DC |
| Contact Type | 4 NC |
| Ambient Temperature | -25°C to +70°C |
| Protection Type | IP67 |
| Weight | Approx. 0.34 kg |
