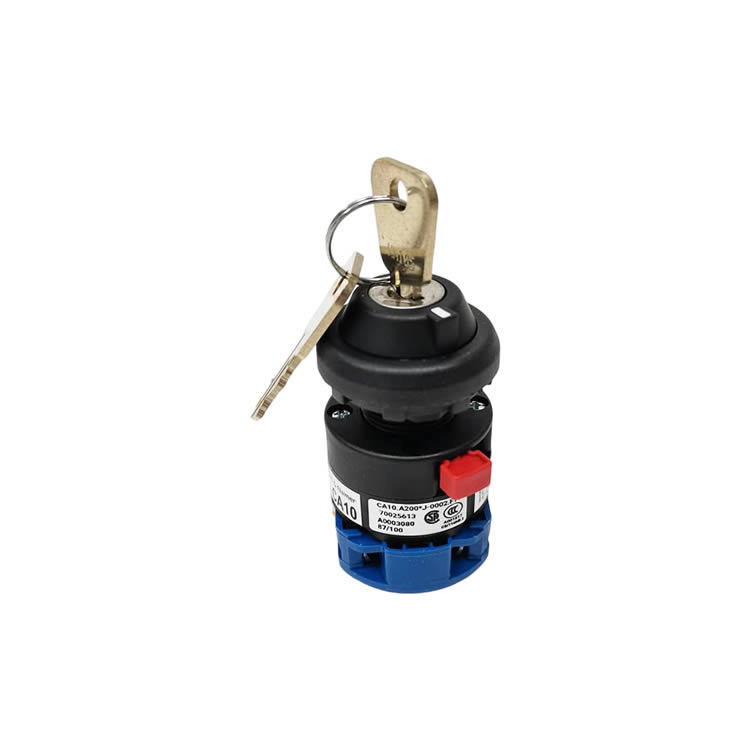

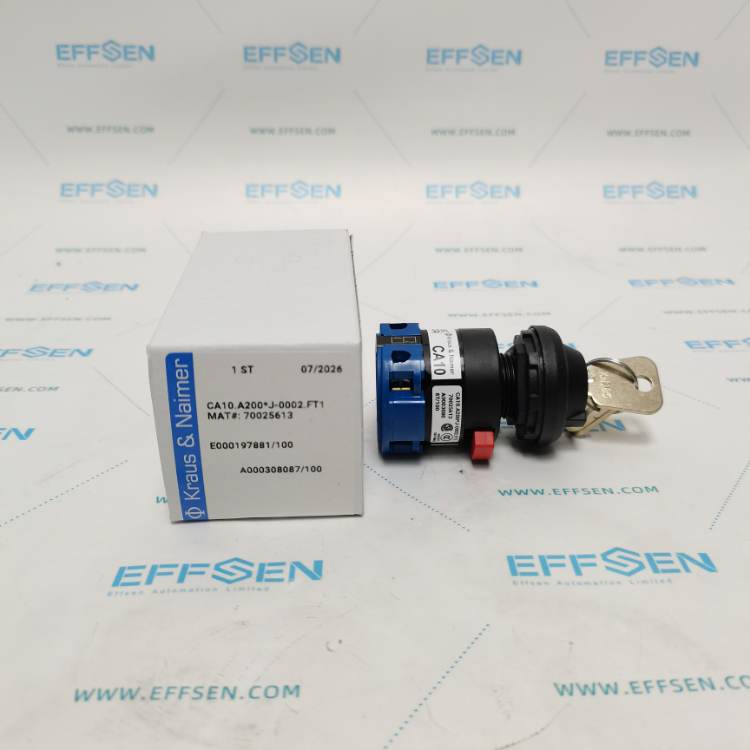

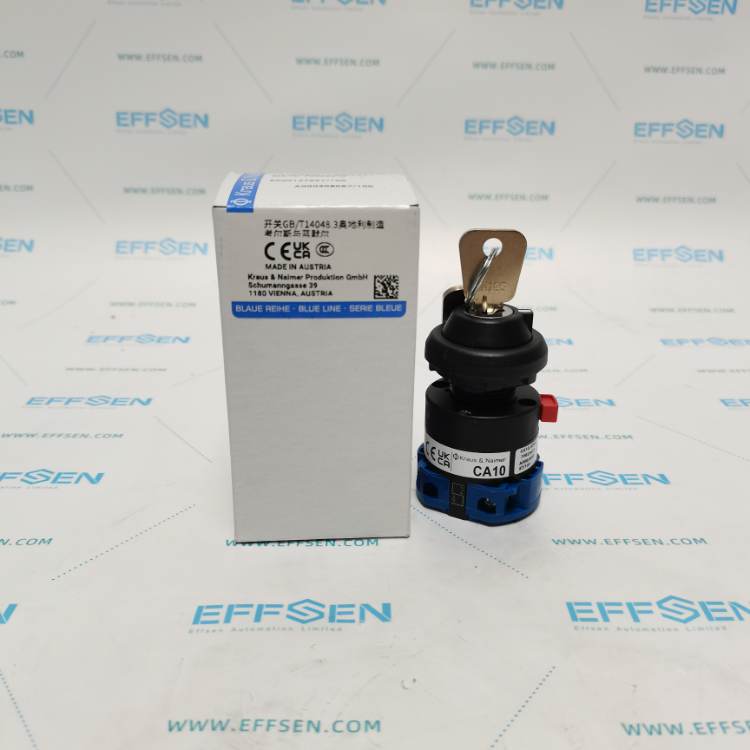

Kraus & Naimer CA10.A200*J-0002.FT1 Cam Switch
Brief: Austrian Kraus & Naimer CA10 series 48mm panel-mount cam switch, rated thermal current 20A, A200 single-pole 2-position 60° switching, J-type handle, 0002 contact cam code, FT1 front plate sealed protection, used for control cabinet power switching, local/remote selection, and instrument circuit signal conversion.
Model Number Breakdown
CA10: Product series, compact cam switch, panel cut-out 48×48mm
A200: Single pole, 2 positions, switching angle 60°
J: Standard black handle
0002: Cam contact arrangement code, 2-position single-pole on/off logic
FT1: Front panel sealed version, panel side IP65 protection
Specifications
| Item | Specification |
|---|---|
| Rated Thermal Current (Ith) | 20A |
| Rated Insulation Voltage (Ui) | 690V |
| Rated Impulse Withstand Voltage (Uimp) | 6kV |
| Utilization Category | AC-23A (7.5kW at 380V); AC-3 (5.5kW motor); AC-15 control circuit |
| Terminal Type | Side screw terminals, finger-proof protection (IP20 terminal side) |
| Panel Cut-Out | 48×48mm |
| Mechanical Life | 1 million operating cycles |
| Protection Degree | Panel side IP65 (FT1 seal), terminal rear IP20 |
| Mounting | Control cabinet panel snap-in mounting |
| Material | Flame-retardant engineering plastic base, silver alloy contacts |
| Weight | Approx. 0.18kg |
| Approvals | IEC60947, UL, CCC |
