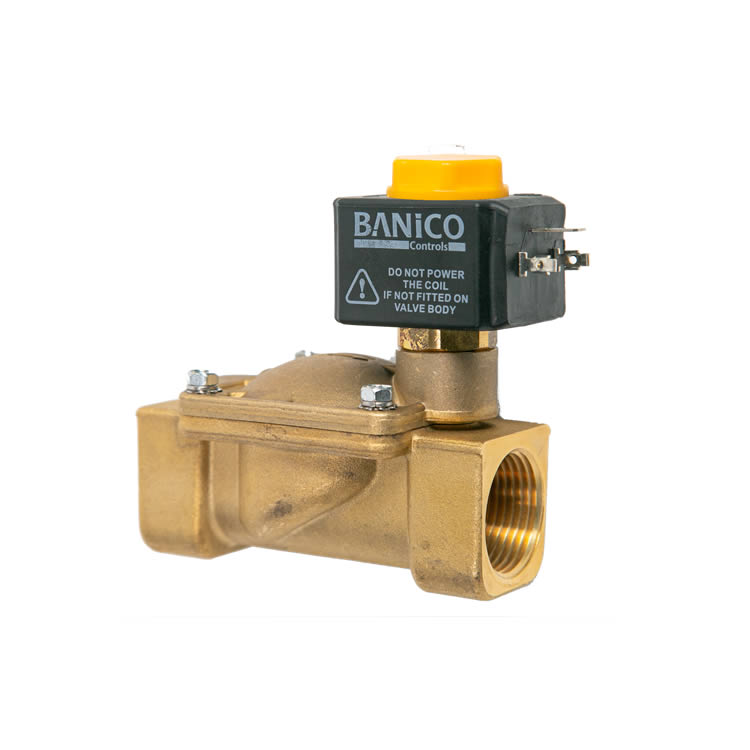

Solenoid valves for large flow capacity, suitable for water, air, oil, inert gases and other fluids non-corrosive for copper alloys, with viscosity up to 2° Engler.
OPERATION AND INSTALLATION
> 2 way valve, normally-closed
> Servo-assisted membrane actuator

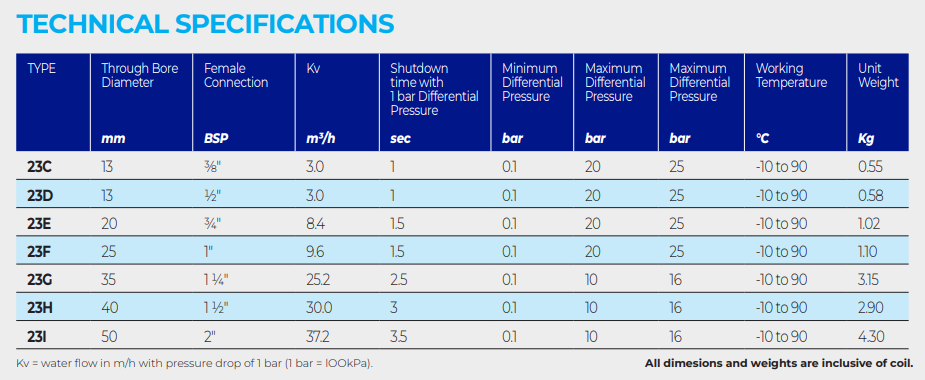

> Female end connections, size 3/8" to 2" BSP
> Upstream media enters the space above the membrane, pressing it
against the seat, preventing the flow. When the coil is energized,
the pilot plug opens discharging the flow, therefore the media lifts
the membrane disc allowing the flow.
> N.B. minimum differential pressure: 0.1 bar is necessary for valve
to open and close correctly.
> Valve should be mounted in an upright position to operate correctly.
