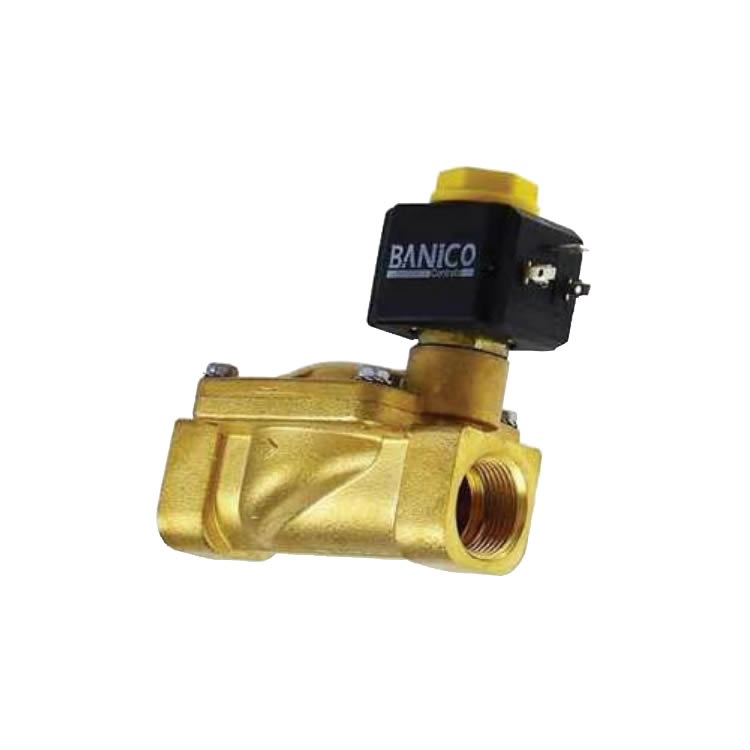

Solenoid valves for steam and superheated water. Suitable for medium and large flow rates.
OPERATION AND INSTALLATION
2 way valve, normally-closed
Servo-assisted membrane actuator

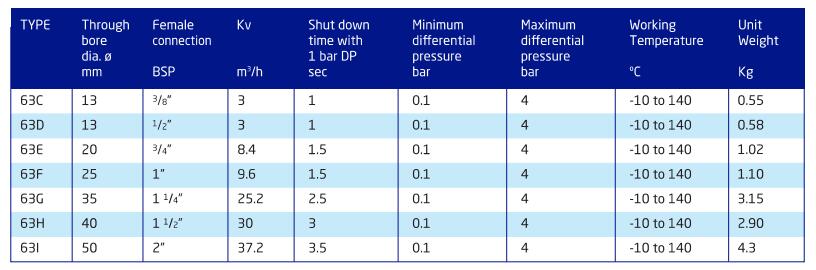

Female end connections, size 3/8" to 2" BSP
Upstream media enters the space above the membrane, pressing it against the seat, preventing the flow. When the coil is energized, the pilot plug opens discharging the flow, therefore the media lifts the membrane disc allowing the flow
N.B. minimum differential pressure : 0.1 bar is necessary for valve to open and close correctly
Valve should be mounted in an upright position to operate correctly
