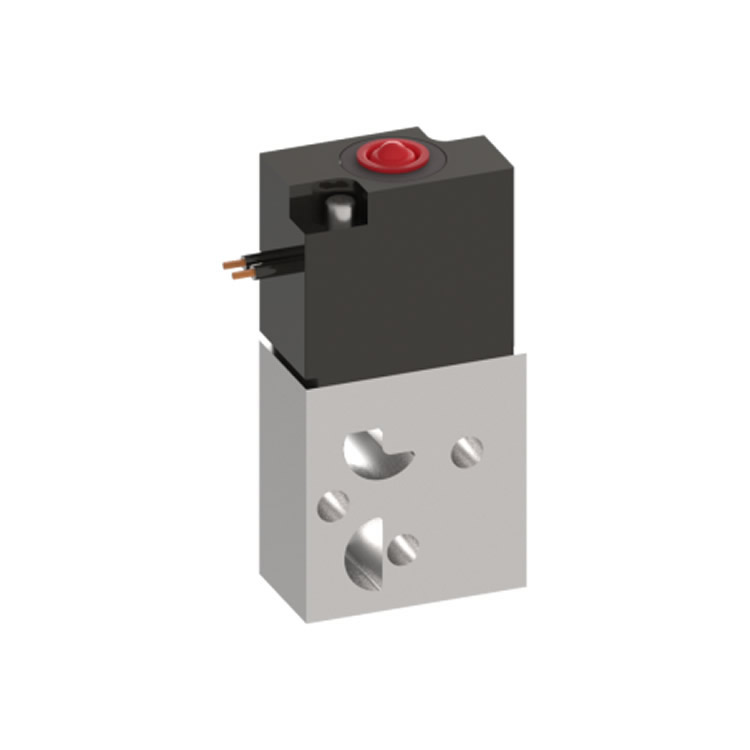

The 1/8 NPSF, 19mm-wide 410 series features a compact structure, high flow rate, and low cost. It is a direct-acting, 4-way solenoid valve that operates reliably under vacuum to 125 psi. It is versatile in application. The manifold valve can function as a normally closed, normally open, diverter or selector 3-way valve, or as a 4-way valve. It is well-suited for reliably controlling double-acting cylinders with bore sizes up to 1-1/4 inches (32 mm). Optional exhaust flow control (Code 70) is available for consideration. It is manufactured in accordance with Humphrey's industry-leading stringent leakage requirements. Made in the USA. Compliant with RoHS standards.
Media: Air, inert gases, vacuum
Valve Function: Versatile 4-way single solenoid valve
Voltage: 24VDC
Pipe Type: Stack body, outlet manifold
Port Size: 1/8 NPSF
Number of Ports: 4 ports
Number of Positions: 2 positions
Coil Inlet Direction: Standard
Dimensions (inches) H x W x D: 2.75 x 0.75 x 1.25
Operation Type: Direct-acting
Flow Rate - SCFM @ 100 psig: 10
Flow Rate - LPM @ 6.9 bar: 283
ESEOD (Orifice) - inches (mm): 0.088 (2.34)
Flow Coefficient (Cv): 0.14
Lubrication: Not required
Pressure Range (psi): -28" Hg to 125
Response Time per Step (ms): 12/10
Maximum Duty Cycle: 600 cycles per minute
Ambient Temperature Range (⁰F): 32 to 125
Wetted Materials: Anodized aluminum, brass, SST, nitrile rubber N, acetal
Weight (ounces): 4.0
Electrical Inlet: Leads - 24 inches
Voltage Range: +10%, -15%
Power Consumption (w): 4.5
Manual Override: Non-latching
Compliance: RoHS standards
