Parameters:

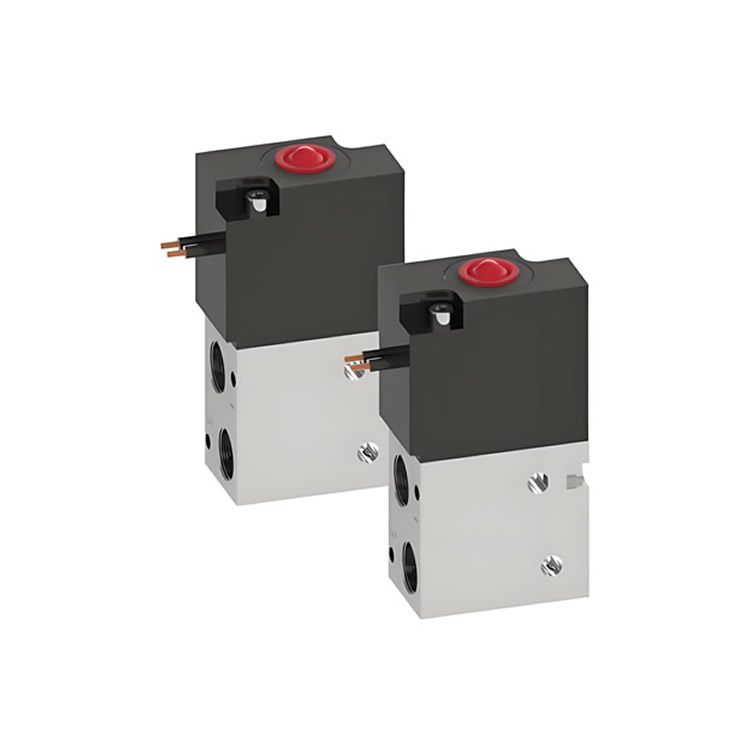

Model: V310 12VDC
Manufacturer: Humphrey Products
Number of Ports: 3
Number of Positions: 2
Valve Function: Single solenoid, versatile
Pipe Type: Inline, direct piping
Dimensions: Height 2.38 inches, Width 0.75 inches, Depth 1.25 inches (or Height 59.94mm, Width 19.05mm, Depth 31.75mm)
Applicable Media: Air, inert gases
Operation Type: Direct-acting
Flow Capacity: 0.17 Cv at 40 psi
Port Size: 1/8 NPSF
Pressure Range: 0 to 125 psi
Response Time: 12/10 milliseconds for open/close, respectively
Operating Speed: 600 cycles per minute
Wetted Materials: Anodized aluminum, brass, stainless steel, nitrile rubber, polyoxymethylene
Weight: Approximately 113.4 grams
Electrical Inlet: Wires, length 24 inches
Voltage: 12 volts DC, with a voltage range of +10%, -15%
Power Consumption: 4.5 watts
Coil Inlet Direction: Standard, via Port 2
Lubrication: Not required
Media Filtration: Recommended to use a 40-micron filter
Ambient Temperature Range: 32 to 125°F (approximately 0 to 52°C)
Production Standard: Compliant with RoHS standards
Product Usage:
The Humphrey V310 12VDC solenoid valve is a compact, high-flow, and cost-effective pneumatic directional control valve with versatile functionality. This valve can serve as a normally closed, normally open, diverter, or selector, and can achieve 2-way functionality by plugging Port 1 or 3. Due to its excellent performance and adaptability, the Humphrey V310 12VDC solenoid valve finds widespread applications in industrial automation and control systems, particularly in scenarios requiring precise control of gas flow.
