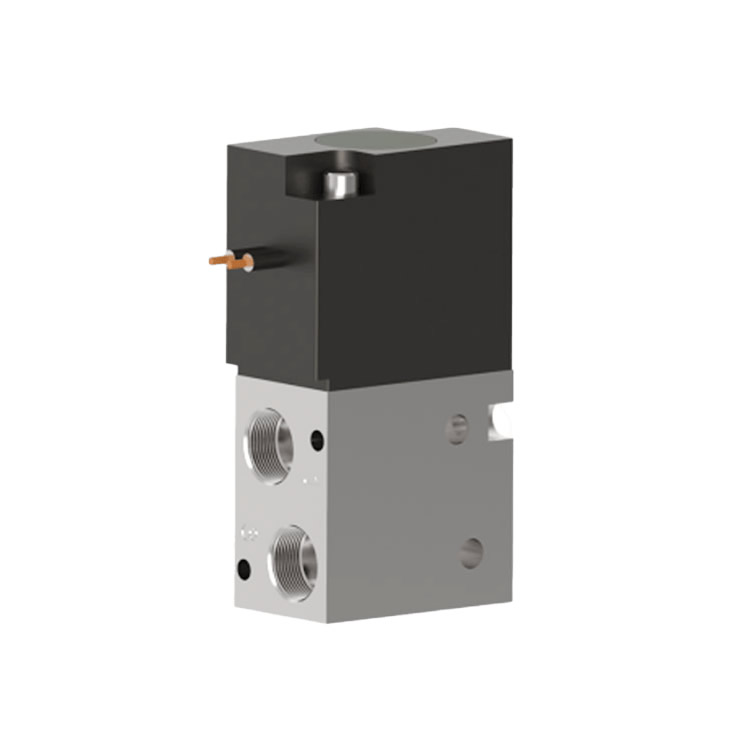

Latching solenoid valve. Electric pulse-shifted valve. The valve remains shifted until a second pulse of opposite polarity restores it to its original state. The 1/8 NPSF, 19mm-wide L310 series features a compact structure, high flow rate, and low cost. This 3-way solenoid valve, utilizing a direct-acting mechanism, operates reliably within the range from vacuum to 80 psi. It is versatile in application. The manifold valve is normally closed or normally open. Please consult the factory for diverter or selector functions. Insert into Port 1 or 3 to achieve 2-way functionality. The coil is encapsulated. It is manufactured in accordance with Humphrey's industry-leading stringent leakage requirements. Made in the USA. Compliant with RoHS standards.
Media: Air, inert gases, vacuum
Valve Function: Latching solenoid valve
Voltage: 12VDC
Pipe Type: Direct inline piping
Port Size: 1/8 NPSF
Number of Ports: 3 ports
Number of Positions: 2 positions
Coil Inlet Direction: Standard, via Port 2
Dimensions (inches) H x W x D: 2.38 x 0.75 x 1.25
Operation Type: Direct-acting latching solenoid valve
Flow Rate - SCFM @ 100 psig: 12
Flow Rate - LPM @ 6.9 bar: 339
ESEOD (Orifice) - inches (mm): 0.1 (2.54)
Flow Coefficient (Cv): 0.18
Lubrication: Not required
Pressure Range (psi): -28" Hg to 125
Response Time - Open/Close (ms): 100
Maximum Duty Cycle: 15%
Ambient Temperature Range (⁰F): 32~125
Wetted Materials: Anodized aluminum, brass, SST, nitrile rubber N
Weight (ounces): 4.0
Electrical Inlet: Leads - 24 inches
Voltage Range: +/-10%
Power Consumption (w): 12 (during pulse)
Manual Override: No override
Compliance: RoHS standards
