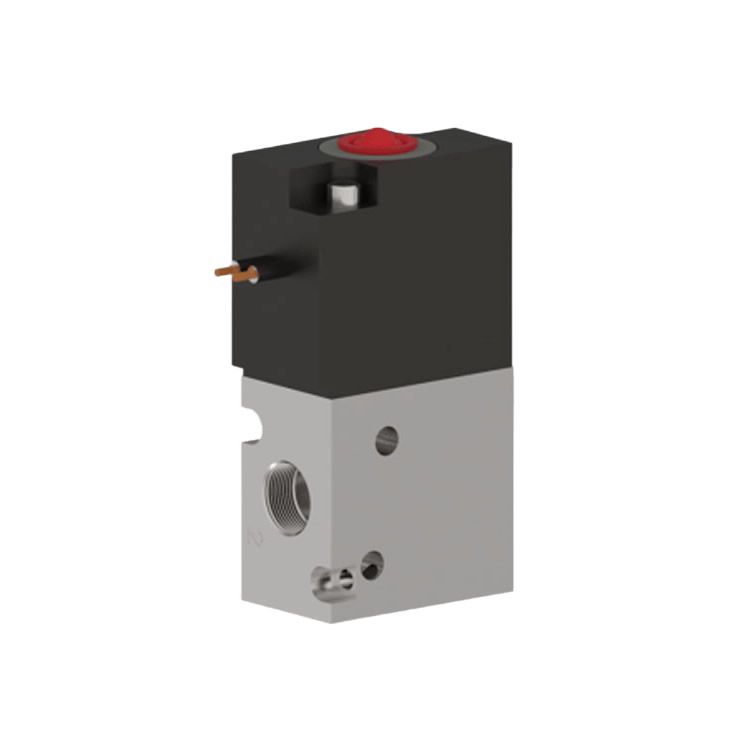

The 1/8 NPSF, 19mm-wide 310 series boasts a compact structure, high flow rate, and low cost. This 3-way solenoid valve operates reliably using a direct-acting mechanism within the range of 0 to 125 psi. It is versatile in application. The manifold valve offers functions such as normally closed, normally open, diverter, or selector. Insert into Port 1 or 3 to achieve 2-way functionality. The coil is encapsulated. It is manufactured in accordance with Humphrey's industry-leading stringent leakage requirements. Made in the USA. Compliant with RoHS standards.
Media: Air, inert gases
Valve Function: Single solenoid valve, multi-purpose
Voltage: 12VDC
Pipe Type: Direct inline piping
Port Size: 1/8 NPSF
Number of Ports: 3 ports
Number of Positions: 2 positions
Coil Inlet Direction: Standard, via Port 2
Dimensions (inches) H x W x D: 2.38 x 0.75 x 1.25
Operation Type: Direct-acting
Flow Rate - SCFM @ 100 psig: 11
Flow Rate - LPM @ 6.9 bar: 311
ESEOD (Orifice) - inches (mm): 0.097 (2.47)
Flow Coefficient (Cv): 0.17
Lubrication: Not required
Pressure Range (psi): 0-125
Response Time per Step (ms): 12/10
Maximum Duty Cycle: 600 cycles per minute
Ambient Temperature Range (⁰F): 32~125
Wetted Materials: Anodized aluminum, brass, SST, nitrile rubber N, acetal
Weight (ounces): 4.0
Electrical Inlet: Leads - 24 inches
Voltage Range: +10%, -15%
Power Consumption (w): 4.5
Manual Override: Non-latching
Compliance: RoHS standards
