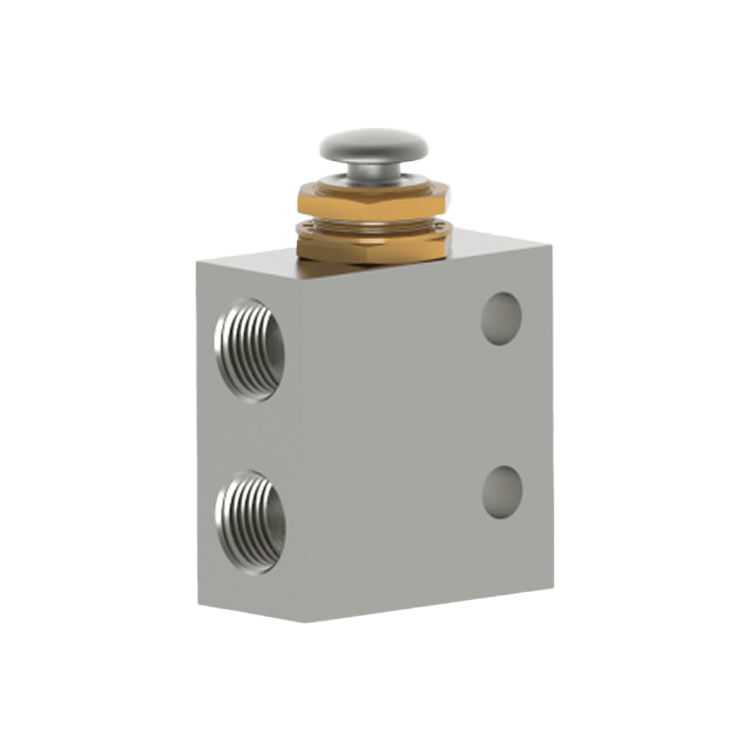

Three-way miniature button valve, multi-purpose, with spring return and a 1/8 NPSF orifice. All TAC button valves feature an attractively work-hardened SST button above a 15/32-32 threaded collar. This feature allows for panel mounting or acceptance of various TAC operators. The button is bottomed on the collar to prevent valve over-travel. Compact. Rugged.
Media: Air
Valve Function: 3-way, spring return
Pipe Type: Direct inline piping
Port Size: 1/8 NPSF
Number of Ports: 3 ports
Number of Positions: 2 positions
Included Options: Hardened button for manual or mechanical use, panel mounting hardware
Approximate Dimensions (inches) H x W x D: 1.8 x 0.63 x 1.25
Operation Type: Button
Flow Rate - SCFM @ 100 psig: 22.5
Flow Rate - LPM @ 6.9 bar: 637
ESEOD (Orifice) - inches (mm): 0.145 (3.69)
Flow Coefficient (Cv): 0.38
Lubrication: Recommended
Pressure Range (psi): 0-125
At valve pressure of:
Actuating Force (lbs):
30 psi / 100 psi
4 / 5.5
Operating Speed (cycles/minute): 900
Ambient Temperature Range (⁰F): -20~180
Wetted Materials: Aluminum, brass, SST, nitrile rubber N
Weight (ounces): 3.0
Accepts Pilot Operators (sold separately): 341A, 341AR, 341AS, 341ASR
Accepts Manual Operators (sold separately): 34F, 34T
Accepts Mechanical Operators (sold separately): 34B, 34C, 34CW, 34 Channel
