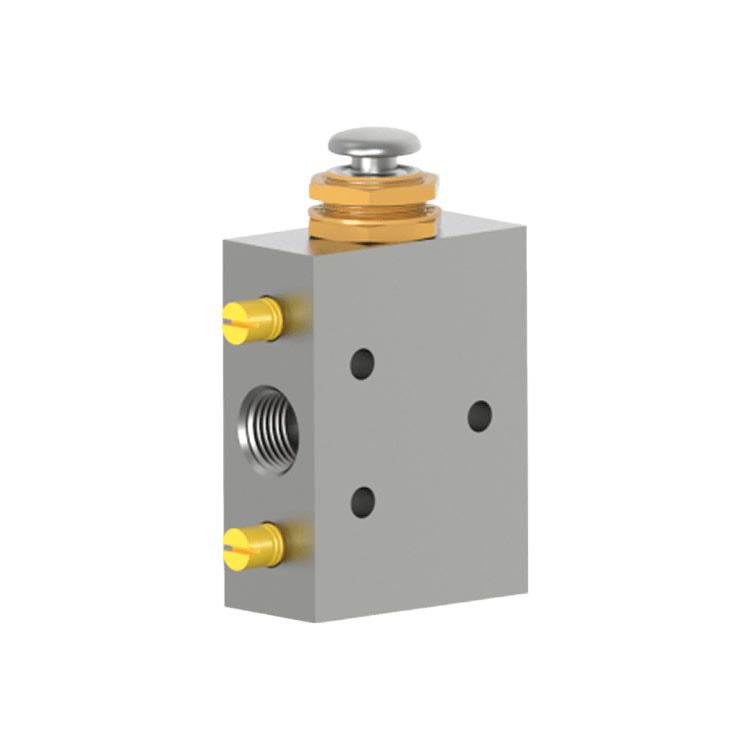

Four-way miniature button valve with spring return, featuring 1/8 NPSF pipe ports. All TAC button valves come with an attractively work-hardened SST button above a 15/32-32 threaded collar. This feature allows for panel mounting or acceptance of various TAC operators. The button is bottomed on the collar to prevent valve over-travel. Compact. Rugged. Includes exhaust metering screw.
Media: Air
Valve Function: 4-way, single button, spring return
Pipe Type: Direct inline piping
Port Size: 1/8 NPSF
Number of Ports: 5 ports
Number of Positions: 2 positions
Included Options: Hardened button for manual or mechanical use, panel mounting hardware, EXH flow control
Approximate Dimensions (inches) H x W x D: 2.14 x 0.63 x 1.25
Operation Type: Button
Flow Rate - SCFM @ 100 psig: 22.5
Flow Rate - LPM @ 6.9 bar: 637
ESEOD (Orifice) - inches (mm): 0.145 (3.69)
Flow Coefficient (Cv): 0.38
Lubrication: Recommended
Pressure Range (psi): 0-125
At valve pressure of:
Actuating Force (lbs):
30 psi / 100 psi
5.4 / 8.5
Operating Speed (cycles/minute): 900
Ambient Temperature Range (⁰F): -20~180
Wetted Materials: Aluminum, brass, SST, nitrile rubber N
Weight (ounces): 5.3
