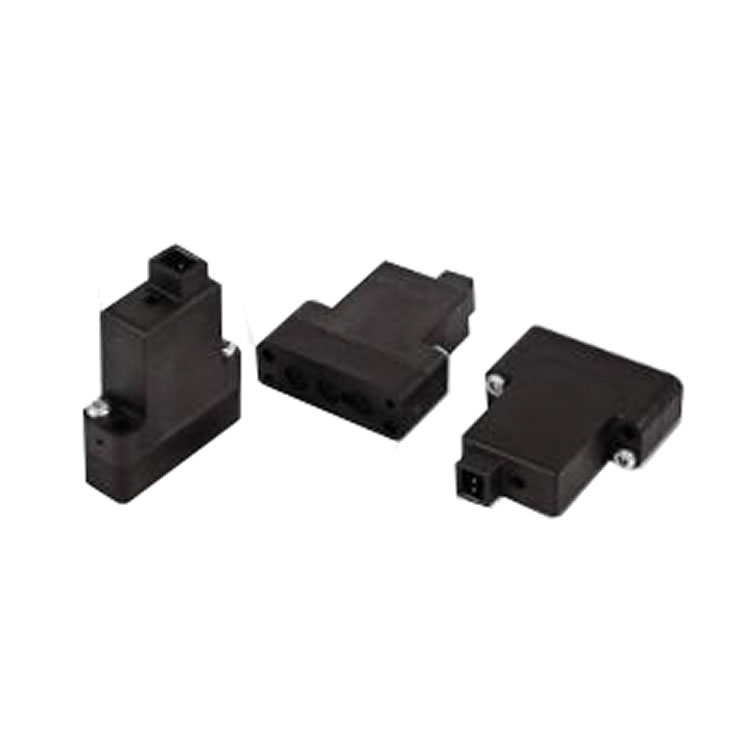

Italian Matrix Solenoid Valve DCX 321.1E3C324
Product Description of Matrix Solenoid Valve DCX 321.1E3C324
General Characteristics:
Operating Fluid (0 to 50°C): Non-lubricated dry air, inert gases. Filtration requirement: 40 microns (minimum).
Temperature Range: -10 to 50°C (ambient temperature).
Opening Time: 3 ms.
Closing Time: 1.5 ms.
Maximum Operating Frequency: 200 Hz.
Weight: Approximately 9 grams.
Expected Product Lifespan:
Up to 10 billion cycles.
IP Rating:
IP52 (standard) - IP62 (optional).
Product Identification:
DCX 3 2 1 E 3 C 3 2 4
Outlet Function:
1 1 outlet configuration: C (normally closed), NC (no single outlet).
Flow Rate (at 6 bar): C configuration - 30 L/min.
