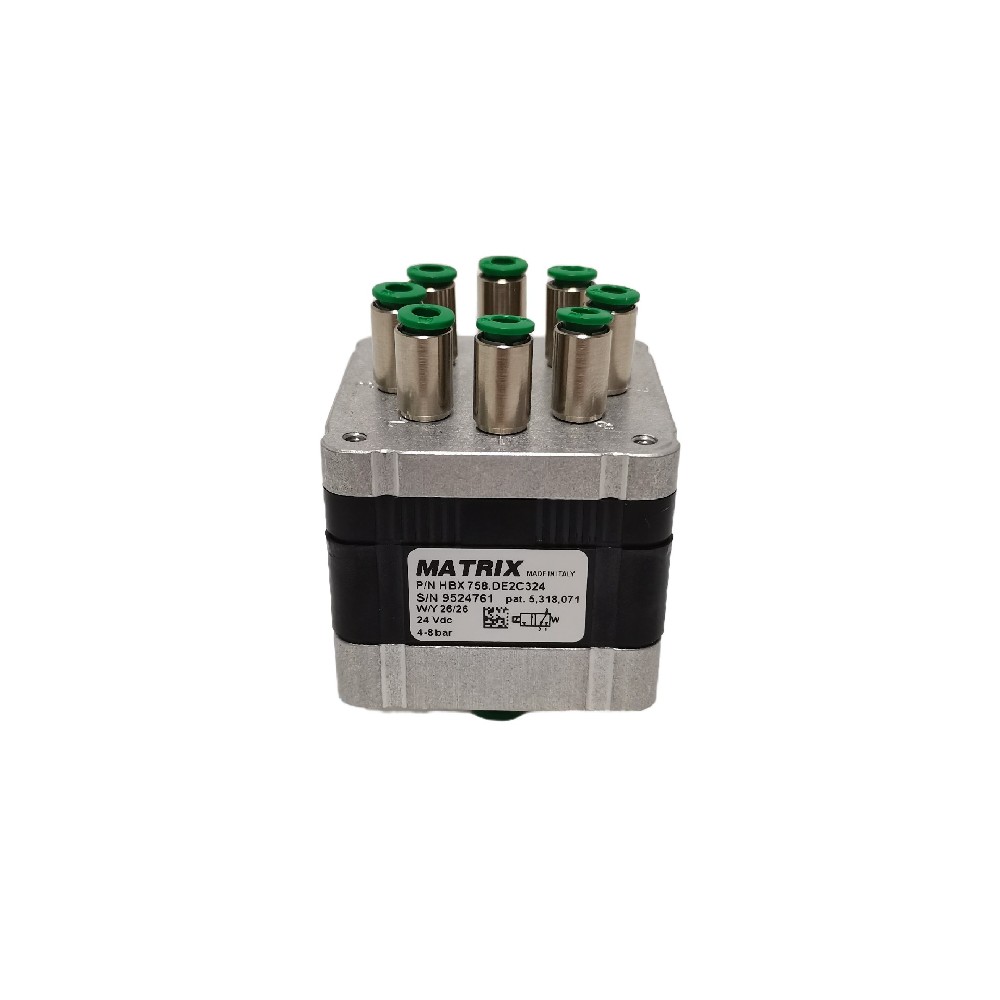

MATRIX HBX 758.DE2C324 Complete Product Description
１.Basic Information
Brand: MATRIX (Italian Matrix, Italian original high-frequency precision solenoid valve brand)
Complete Model: HBX 758.DE2C324
Origin: MADE IN ITALY, original imported from Italy
Power Supply: 24 Vdc DC
Working Pressure: 4–8 bar
２.Model Code Breakdown (HBX 758.DE2C324)
HBX: 750 series integrated direct-acting high-frequency solenoid valve module
758: Valve body specification, 5/2 five-way two-position valve
DE2: Coil / electrical interface specification (24VDC standard coil)
C324: Air circuit interface, sealing, and wiring configuration code
３.Core Technical Parameters (758 Series General)
Medium: Clean, dry, oil-free compressed air, filtration precision ≥40μm
Working Temperature: -10℃ to +50℃
Response Speed: Standard version switching response <7ms; high-speed version up to <2ms
High-Frequency Performance: Continuous operation up to 200Hz, instantaneous peak 300Hz
Flow Rate: Single-channel flow up to 100L/min (ANR) at 6 bar
Service Life: Standard 500 million cycles; frictionless structure version up to 4 billion cycles
Protection Rating: Standard IP65 aluminum alloy valve body (hard anodized aviation aluminum)
４.Core Product Advantages
Ultra-compact integrated module: Multi-valve integrated design saves equipment installation space
High-speed and high-frequency control: Far exceeds ordinary solenoid valves, supports PWM precise flow adjustment
Ultra-long maintenance-free life: Frictionless valve core structure, minimal wear and low failure rate
Wide air pressure adaptability: 4–8 bar wide pressure range, stable under equipment air source fluctuation conditions
Zero-leakage sealing: Suitable for air tightness testing and precision pneumatic control scenarios
５.Typical Application Industries
Automotive component air tightness testing: Cylinder block, brake line, fuel line leakage testing
Printing / inkjet equipment: High-speed inkjet, precise ink ejection control
Automated precision tooling and fixtures: High-speed pneumatic clamping, micro material gripping
Semiconductor and electronic testing equipment: Micro-flow air circuits, precise micro-pressure control
Medical equipment and precision instruments: Clean air source high-precision on/off control
