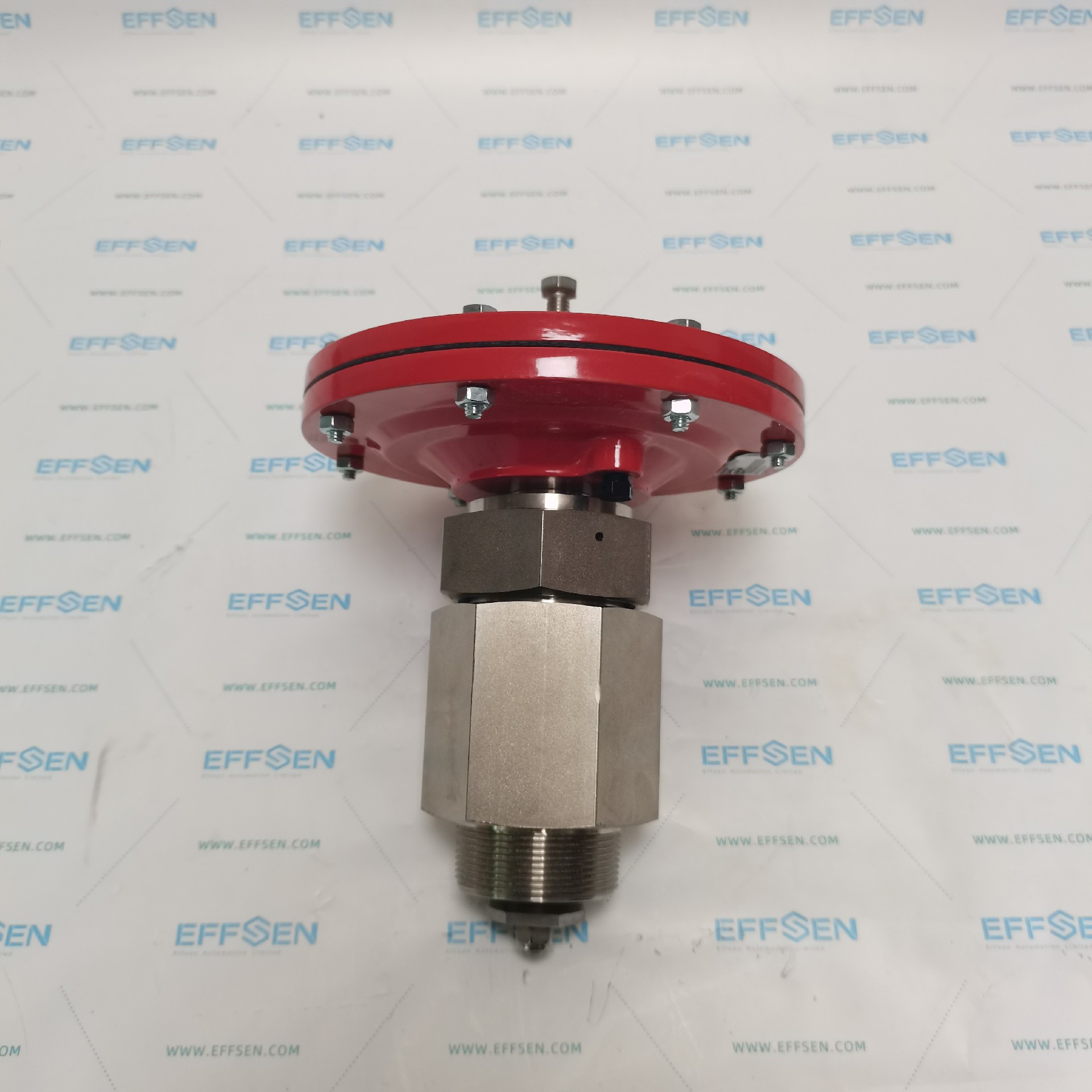

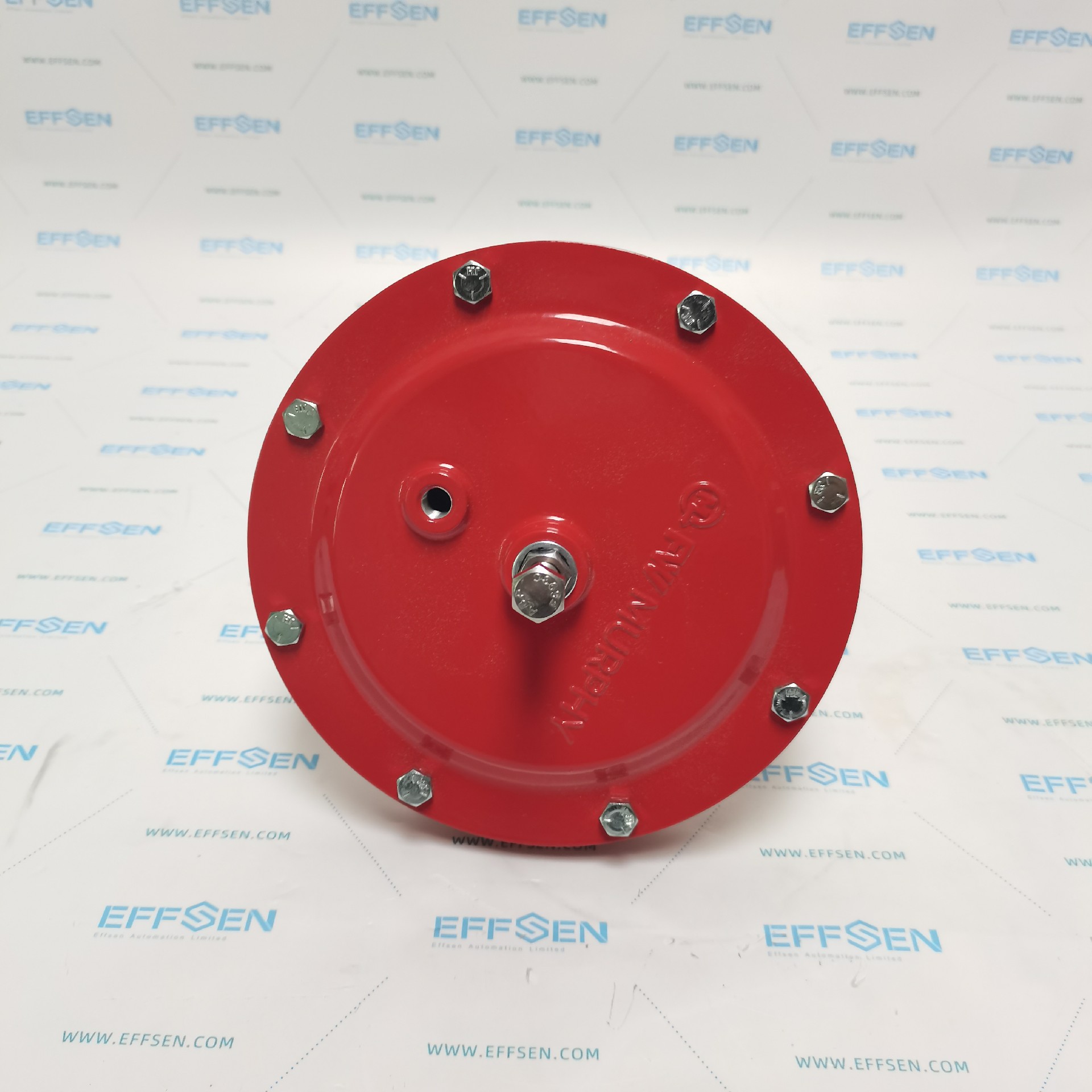

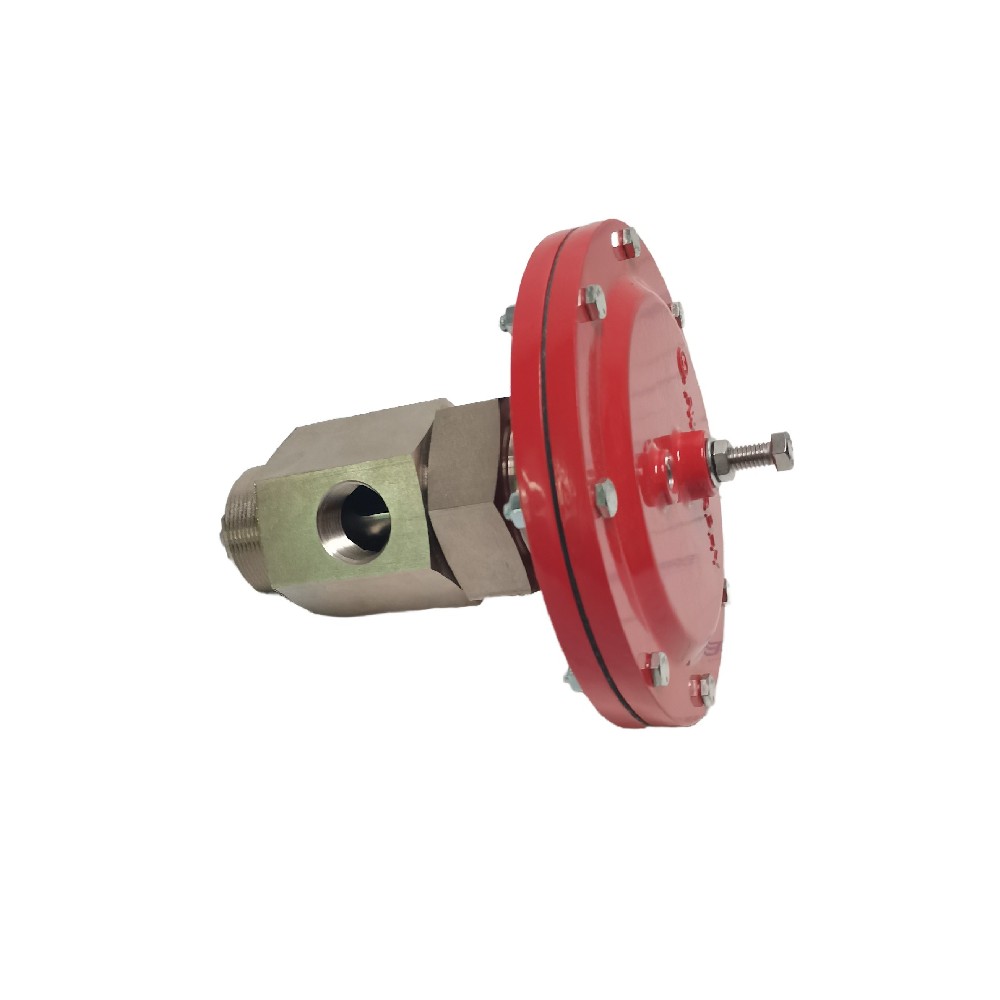

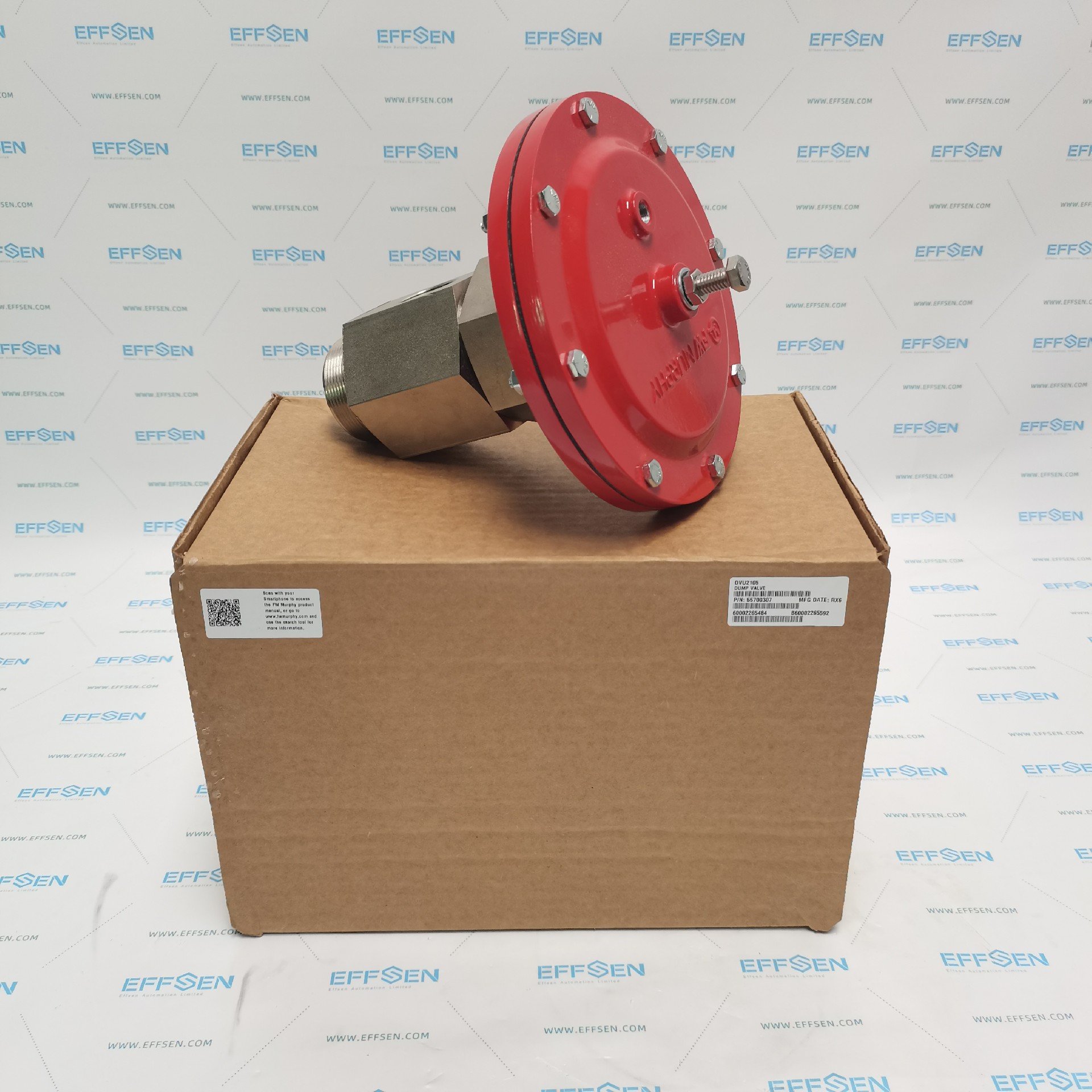

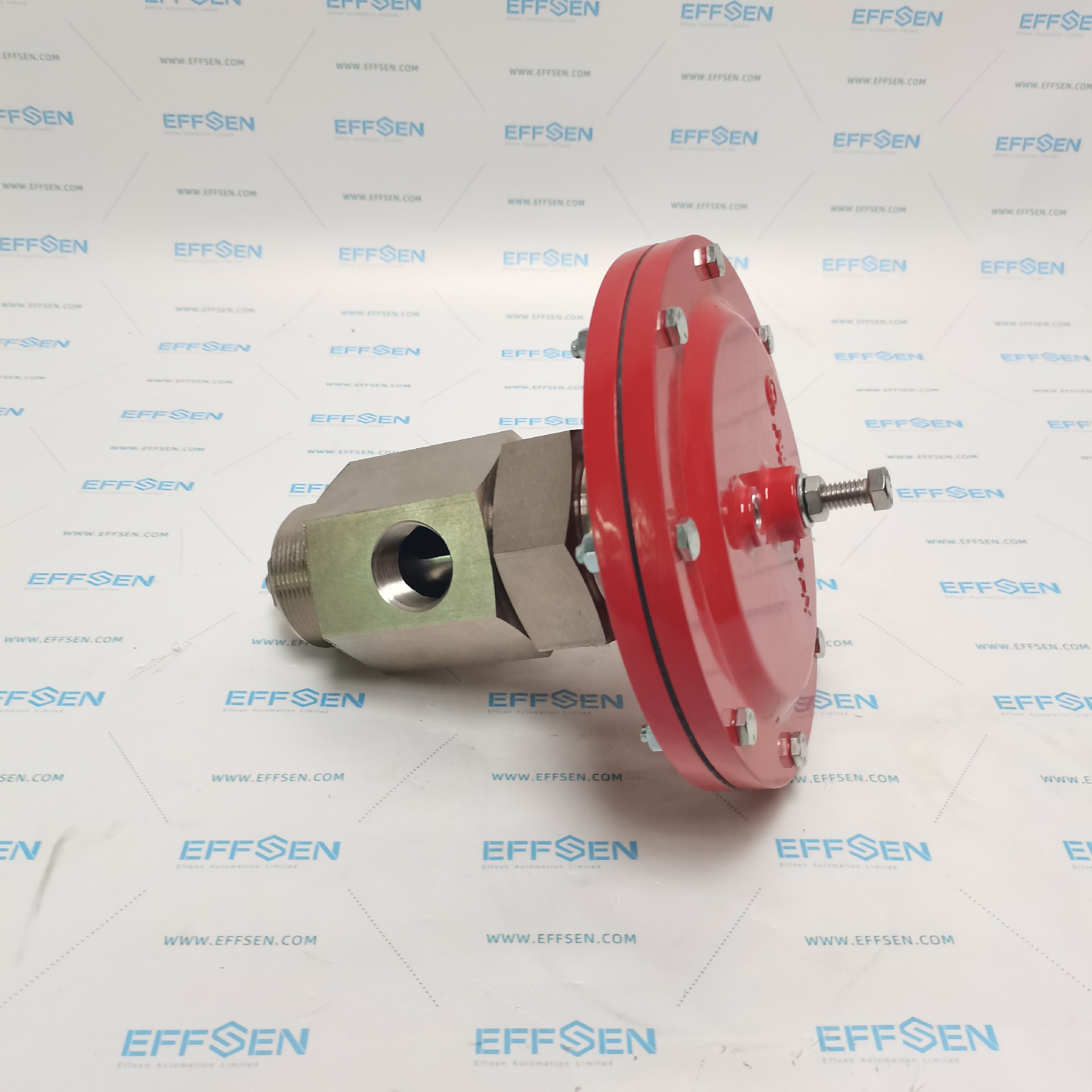

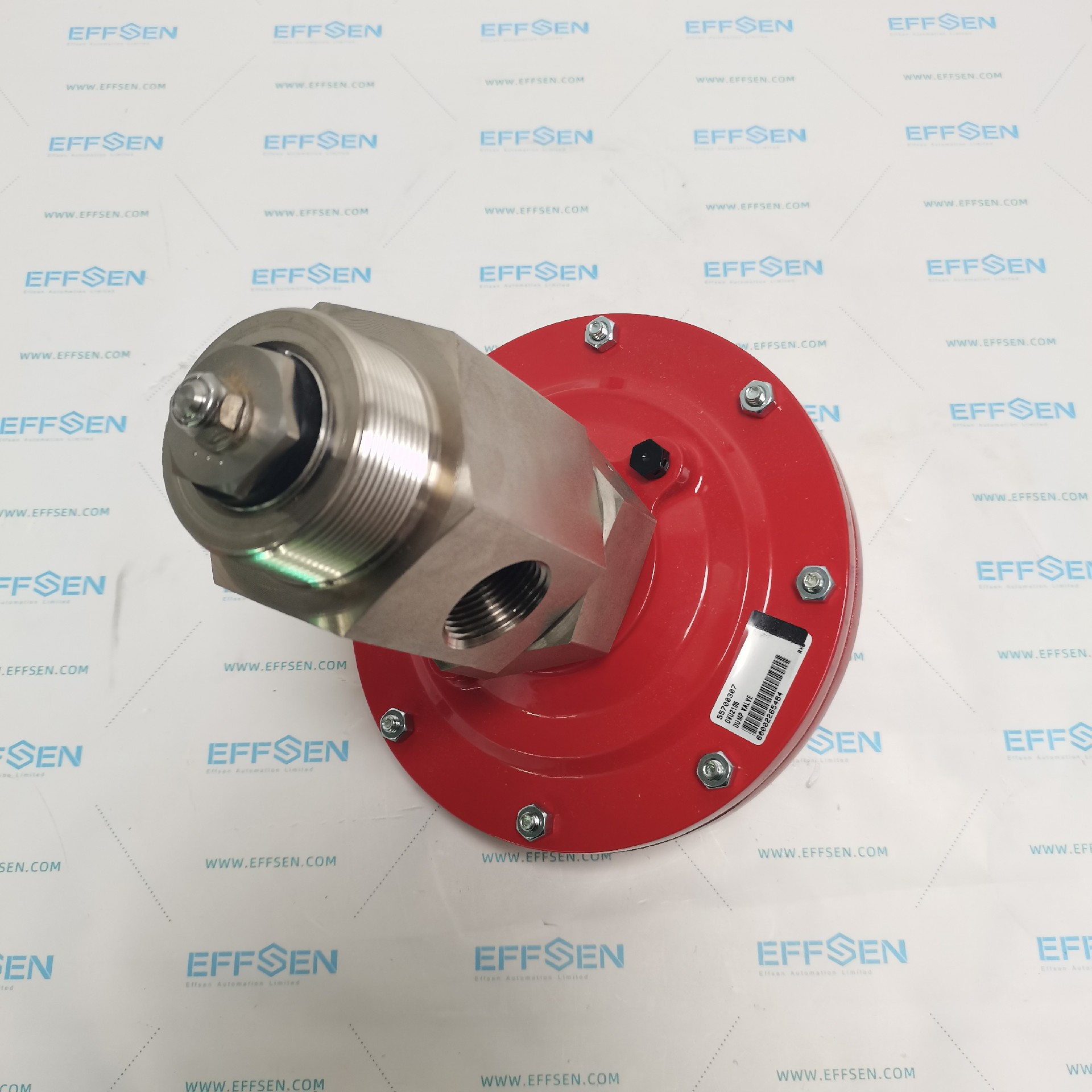

FW Murphy DVU2105 – Pneumatic Dump Valve
The FW Murphy DVU2105 is a diaphragm-actuated, pneumatically controlled dump valve designed for automatic liquid dump control in gas compressor scrubber and level system applications. It operates at 30–70 psi (2.07–4.83 bar) control pressure and handles up to 500 psi (34 bar) maximum process pressure.
Key Highlights:
Pneumatic control via L1200NDVOR or similar level controller
Hex union design allows seat replacement without removing valve from piping
Valve open/closed indicator button
Electroless nickel plated 12L14 carbon steel body
Operating temperature: -30 to 250°F (-34.4 to +121°C)
Shipping weight: 14 lbs. (6.4 kg)
Service Parts:
Seal Kit (includes plug): 55-00-0245
Diaphragm Kit: 55-00-0244
System Compatibility:
SLS2105 Scrubber Level System
