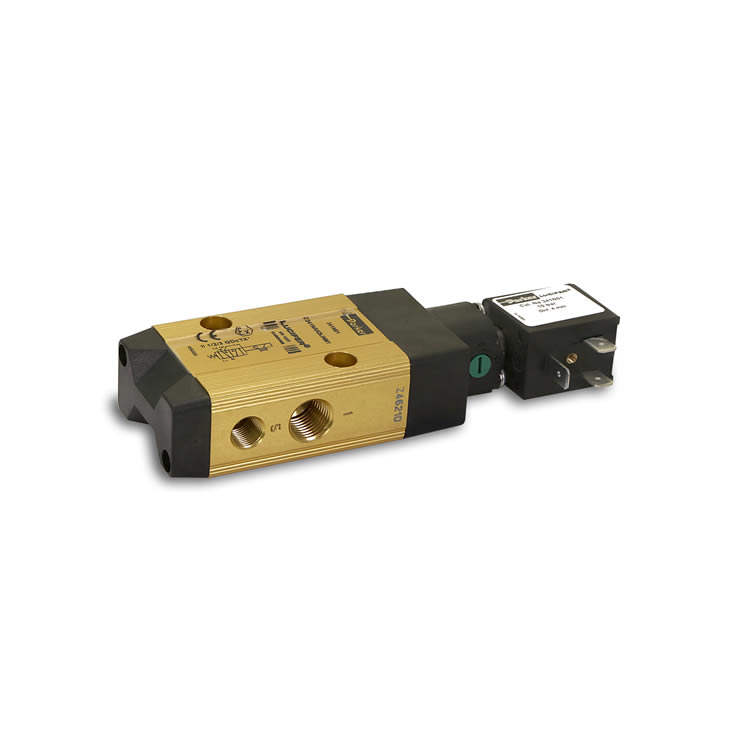

Parker 341N01-8993-488980A2 Solenoid Valve
N Series of Heavy Duty NAMUR Spool valve is a full range of NAMUR indirect operated valves, solenoid or air operated, delivering a borad range of functions including 3/2, 5/2, 5/3
Technical Specifications
The N Heavy Duty Spool NAMUR valve series includes many product solutions for Valve Actuation in the Process Industry. This range delivers an unmatched high flow performance, up to 1400 l/min. The spool design and materials makes this product extremely reliable either for low and high frequency applications making it the best choice for critical process control applications. This product solution modularity in combination with our ATEX coils program can optimize the total ownership costs delivering high reliability, extreme flexibility and best competitiveness.Valve Type: 3/2-5/2 Way Power Supply Voltage: 24V 50Hz Insulation Class: F 155 °C Specifications Met: With captured exhaust - Manual override - In line operator Coil Temperature Range: -40°C +50°C Orifice Size: 4 mm Flow Coefficient 1: 600 l/min Maximum Fluid Temperature: +80°C Function: SPRING RETURN ATEX Specifications Met: - Maximum Operating Pressure: 10 bar Minimum Operating Pressure: 2 bar Port Size: G 1/8 - G 1/4 Actuation Type: Pilot Operated Port Type: Namur Body Material: Anodized Aluminium Media: Air Minimum Fluid Temperature: -25 °C Seal Material: NBR Coil Power Consumption: 2 W Electrical Connection: 2 P + E Plug According to EN 175301-803 Type B Coil Specifications Met: CE - EAC
Markets:
- Pharmaceutical
- Food&Beverage production, storage
- Water treatment
- Refineries
- Powders dosing
Applications:
- Valve Actuation
Features/Benefits:
- Long life cycle expectancy
- High Flow
- SIL Approved by third party
- Wide range of coils available including Atex
