Winner CV08W2003N Hydraulic Check Valve
Hydraulic Check Valve, 1 to 2, Max. 240 bar | Winner

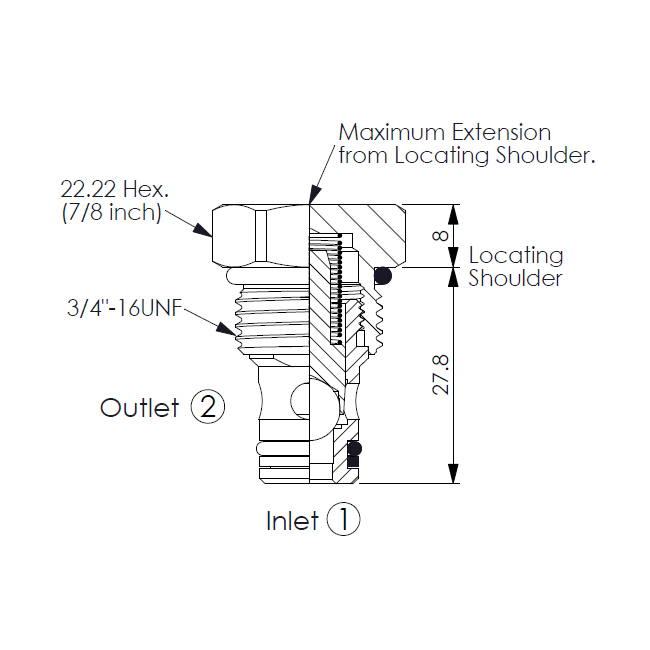

| Cavity | 08W-2 |
|---|---|
| Rated Flow | 30 L/min |
| Maximum Operating Pressure | 240 bar |
| Valve Hex Size | 22.22 mm |
| Valve Installation Torque | 25 - 28 Nm |
| Weight | 0.05 kg |
| Salt Spray Test To DIN EN ISO 9227:2017-07 | Exceed 1000 Hours |
This valve is a check valve used as a blocking or load-holding. When sufficient pressure is supplied to port 1, it opens to port 2. It allows free flow from port 1 to port 2 and blocks the reverse flow.
This valve serves primarily to prevent the unintended movement or creeping of loaded cylinders, and it can also be used to close off specific sections within the system.
Internal components are made of high-quality materials, processed heat treatment and precision grinding to achieve excellent wear resistance and protection against contamination for long-lasting durability.
A variety of cracking springs are available for different back pressure application.
The seal piston check valve features a fully guided poppet, providing enhanced stability and precise alignment within the valve mechanism.
Optimize the movement and positioning of the check components within a check valve to contribute to improved performance, durability, and reliability, ensuring smooth operation and proper alignment of the check component during opening and closing cycles.
Industry common cavity.
Note: Although 2-port check valves can share the same cavity when they have the same frame size, please pay attention to the mounting direction when installing the valve, otherwise the flow may go in the wrong direction.
WINNERcoat® Zinc-Nickel Plating is salt spray tested in accordance with DIN EN ISO 9227 for up to 1000 hours.
Winner guarantees that all products performance a 100% functional test before shipment.
