Winner RV19A30AL-85 Cartridge Valves-valve-Effsen Automation

Winner RV19A30AL-85 Cartridge Valves

Date: 2025-05-10

Models: RV19A30AL-85

Price: Phone or Email Inquiry

Do you have any questions about this product? Please contact our customer service by phone number +852 30623028 Or Quick Inquiry Form.

Product Overview

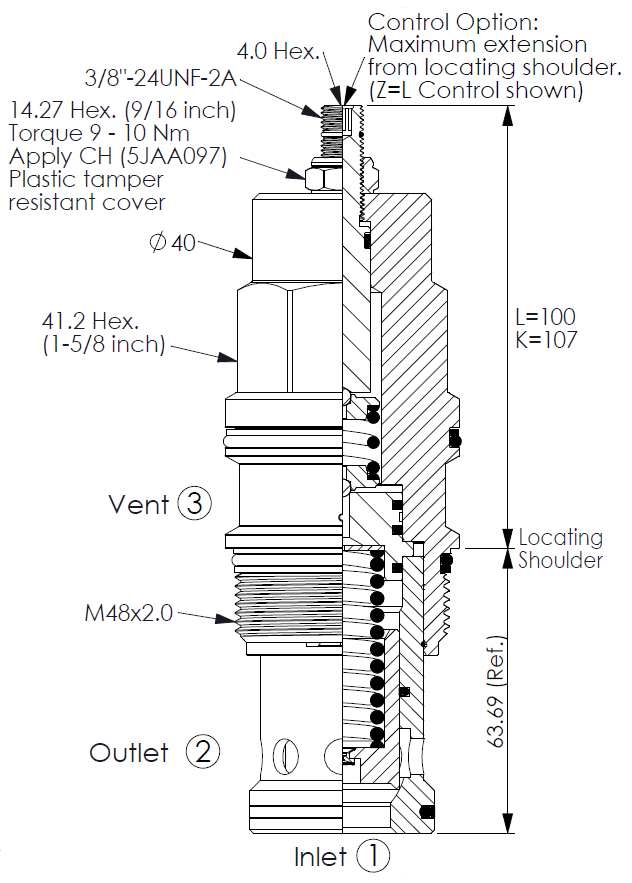

Winner RV19A30AL-85 Cartridge Valves

Cavity: 19A-3 (19AB-3)

Rated Flow: 480 L/min

Ordering Code:RV-19A-30-A-L-85

RV-19A-30-85

Cavity	19A-3 (19AB-3)
Rated Flow	480 L/min
Maximum Operating Pressure	350 bar
Valve Hex Size	41.2 mm
Valve Installation Torque	465 - 500 Nm
Adjustment Screw Internal Hex Size	4 mm
Locknut Hex Size	14.27 mm
Locknut Torque	9 - 10 Nm
Response Time-Typical	2 ms
Maximum Leakage Approximately	0.7 cc/min at 70 bar
Weight	1.42 kg (Z=L)
