Elpress AKS400B-240 Secure connections
Aluminium-copper through connectors 16 - 500 mm²
Used for splicing Al conductors and Cu conductors
Stranded/solid Al conductors, stranded/flexible Cu conductors.
For multi-stranded Cu conductors, contact crimping using the Dual system is recommended.
Two crimps are needed for Al.

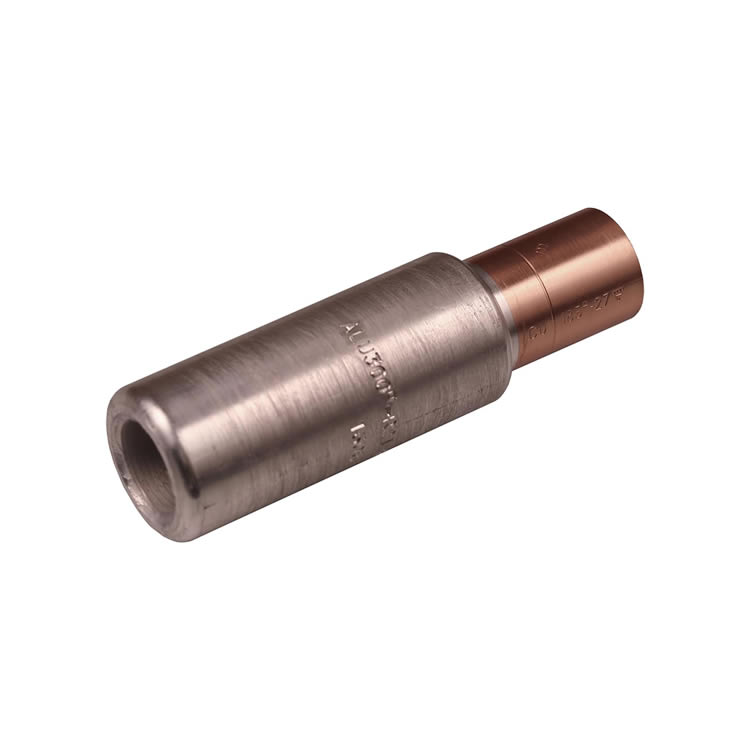

AlCu through connector for stranded/solid Al cable 400 mm² to stranded/flexible Cu cable 240 mm². When crimping the Cu section, place the dies between the mark on the sleeve and the edge of the Cu section. Used with Elpress certified systems V1300, V250.
