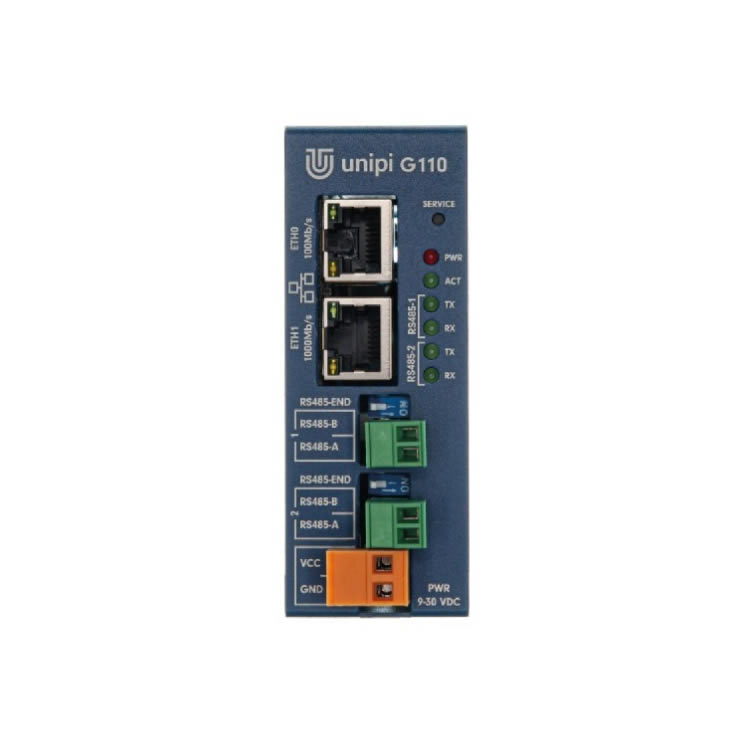

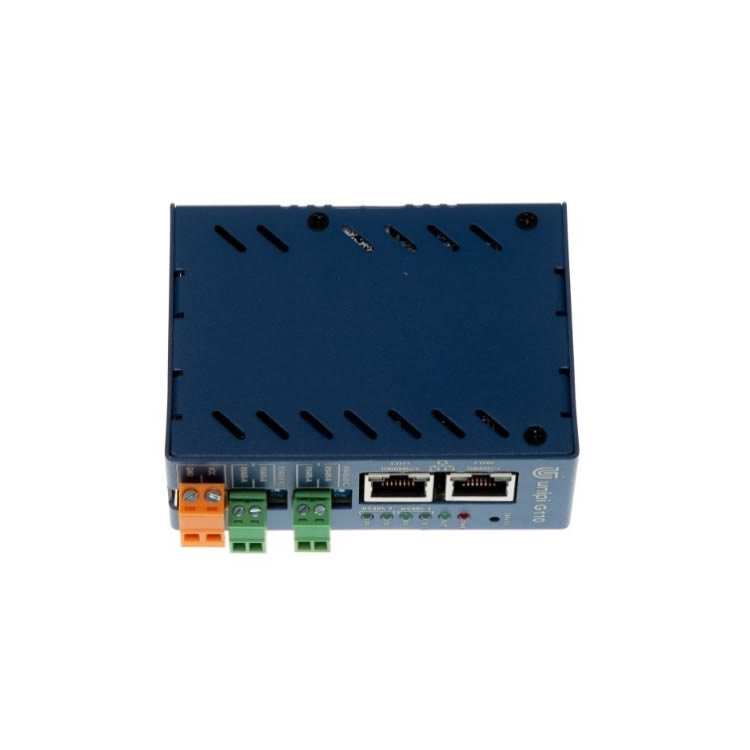

Unipi Gate G110 is a programmable Ethernet / RS485 Linux IoT gateway and logic controller designed for industrial automation, building management systems, and other automation projects. Thanks to sufficient computing power, software openness, and favorable price this IoT platform is applicable as a data logger in SCADA or MES control systems, or in cloud services within Smart City, Smart Factory, and IoT/IIoT projects. Last, but not least, the gateway also represents an easy way to modernize older installations.
Features:
quad-core 600 MHz ARM A53 CPU with 1 GB RAM
onboard 32 GB eMMC memory, can be extended using a microSD card
2× RS485 interface
a pair of Ethernet ports (1 Gbit and 100 Mbit)
compact size, durable aluminum chassis with IP20 protection
can be installed to a DIN rail or an electrical distribution box mounting plate using wall mount kit
software openness (based on Linux OS)
available in OEM version – graphically customizable chassis
delivered with preinstalled Node-RED software (can be reflashed manually)
Product code: 2024047

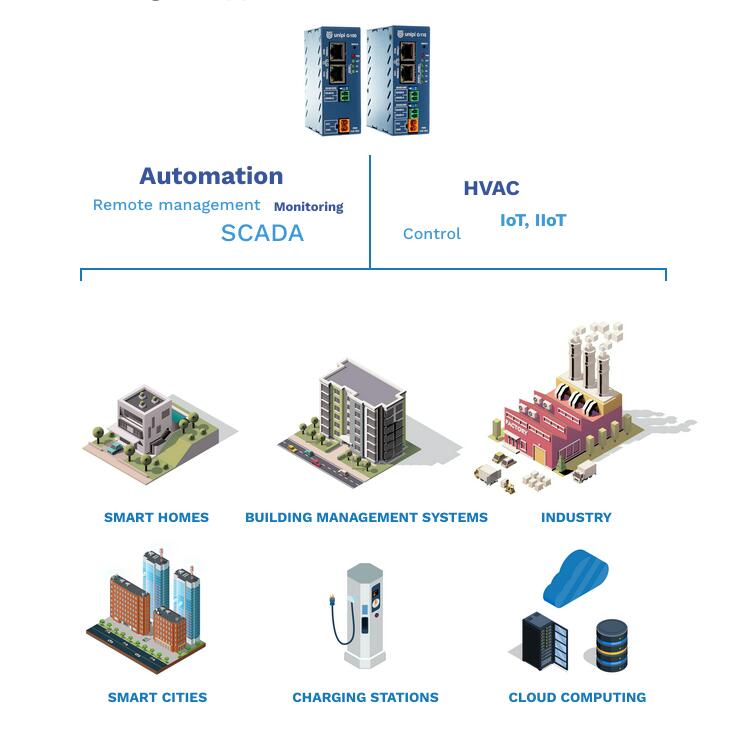

Wide range of applications
