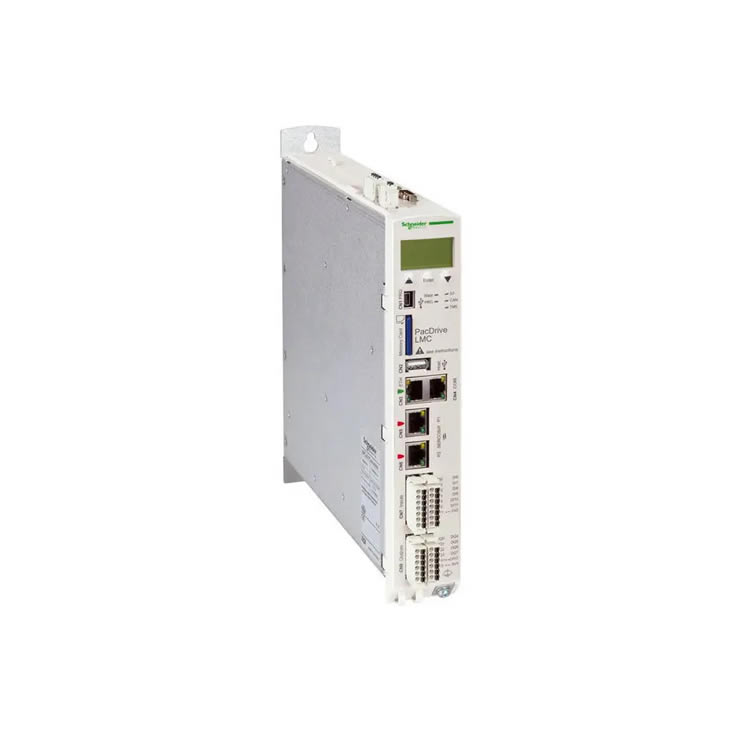

Schneider Electric LMC106CAA10000 6-axis motion controller
Number of axes
6-axis
Signal type
digital
Other characteristics
12/24V
Product applications
for automatic machines, probe
This product is part of the PacDrive 3 range, an offer of motion controllers for automating machines/lines. This motion controller offers 6 axis, 8 discrete inputs, 4 for touch probe input conforming to IEC 61131-2 type 1. It is a motion controller with a rated supply voltage of 24VDC, a discrete output current of 500mA and a power consumption of 30W. It is an IP20 rated product. Its dimensions are 44mm (width) x 222mm (depth) x 270mm (height). It weighs 2.2kg. This product is certified by CULus, CSA, CE, EAC. It meets CSA C22.2 No 14, CSA C22.2 No 274, EN/IEC 61131-2, UL 508C standards. Motion controllers for automating machines/lines with 0 - 130 servo or robot axes. PacDrive 3 LMC controllers provide scalable performance for synchronizing up to 130 servo axes at 1msnetwork update rate and for up to 255 virtual axes.
