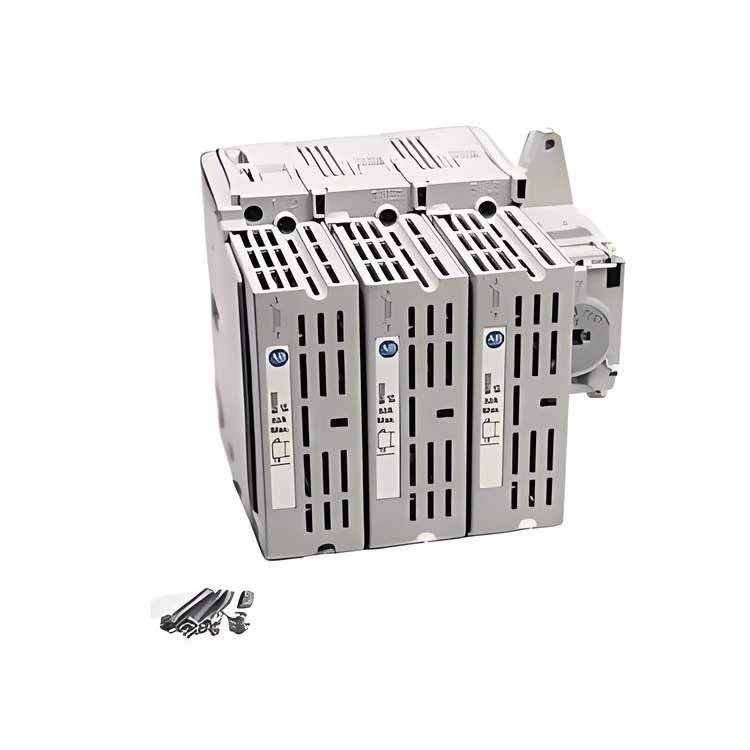

• Product Model: 194R-J30-1753-TBS1
• Product Type: Fused Disconnect Switch
• Applicable Standards: UL and CSA certified, complying with IEC 60947-3, UL 98, UL 508, and other standards
• Rated Current: 30 A
• Fuse Type: UL Class J or CSA HRCI-J fuses
Electrical Parameters
Parameter Specification Value Notes/Reference Tables
Rated Current (Ithe) 30 A (UL) / 40 A (IEC) Refer to Table 1, Table 3
Rated Voltage 600 V AC Refer to Table 1
Rated Horsepower (HP) Refer to specific load type requirements Refer to Table 1
Short-Circuit Breaking Capacity Depends on the performance of the external fuses -
