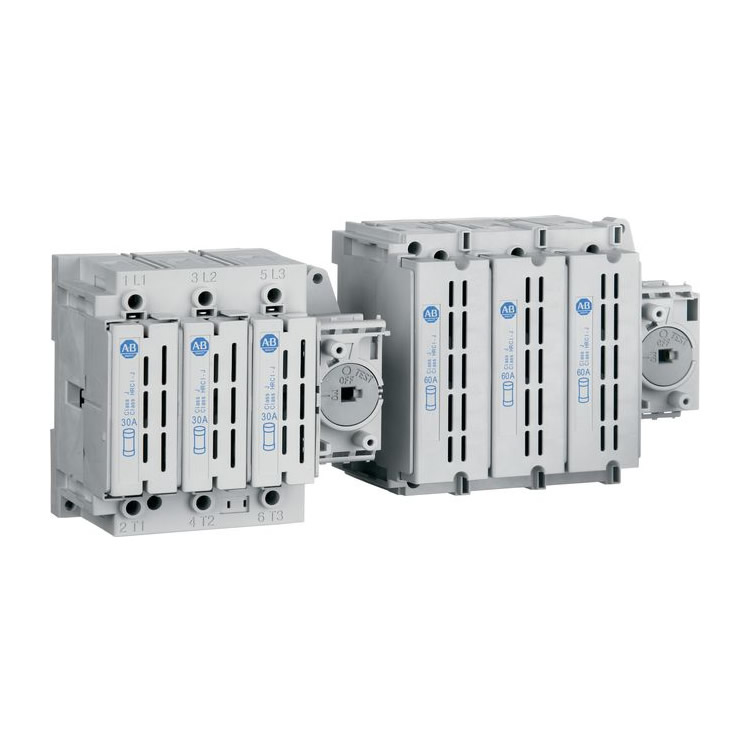

• Product Series: Bulletin 194R
• Type: Non-Fused Disconnect Switch
• Current Rating: 60 A
• Certification System: Applicable to UL/CSA standards (primarily targeted at the North American market)
Core Electrical Specifications
• Rated Current (Ithe):
◦ 60 A (UL/CSA standards)
◦ 80 A (IEC standards, as per Note (1) in Table 5 of the document)
• Rated Voltage: 600V AC (inferred based on UL/CSA standards)
• Short-Circuit Protection: A separate fuse must be installed upstream of the power supply for short-circuit protection.
• Applicable Standards: Complies with UL 98 (as a service entrance disconnect device) and UL 508 (as a motor disconnect device).
