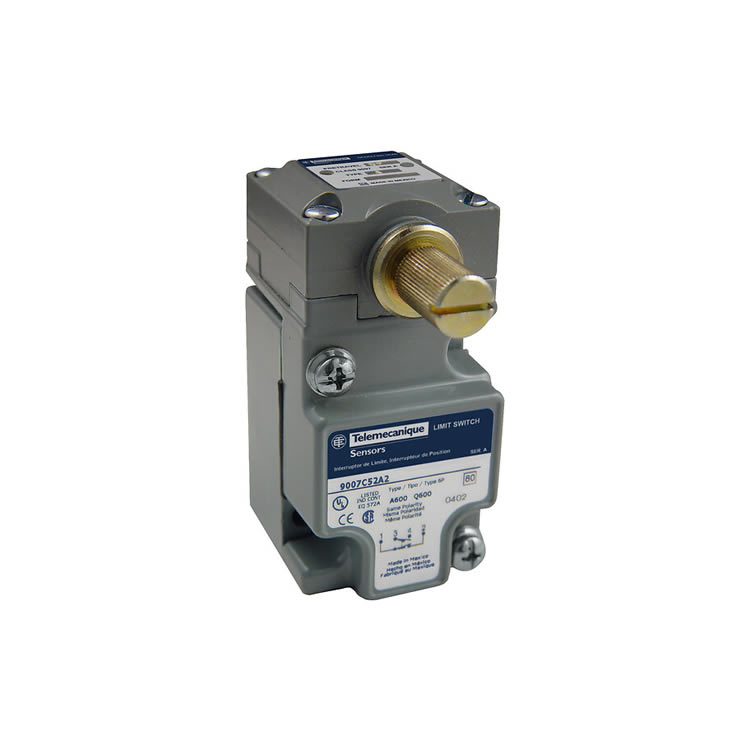

Limit switch, 9007, 9007C compact 1 NO/NC, rotary head, CW+CCW, low differential
Range of product: 9007
Series name: Heavy duty
Product or component type: Limit switch
Device short name: 9007C
Product specific application: Compact box
Body type: Plug-in
Head type: Rotary head
Material: Metal
Fixing mode: By the body
Movement of operating head: Rotary
Type of operator: Zinc spring return without operating lever (-)9007C lever
Type of approach: Lateral approach, 1 or 2 programmable direction
Electrical connection: Screw-clamp terminals (AWG 22...AWG 12), 1-2
Cable entry: 1 entry for M20 x 1.5 mm conforming to BS 4568
Contacts type and composition: NC-NO
Positive opening: Without
