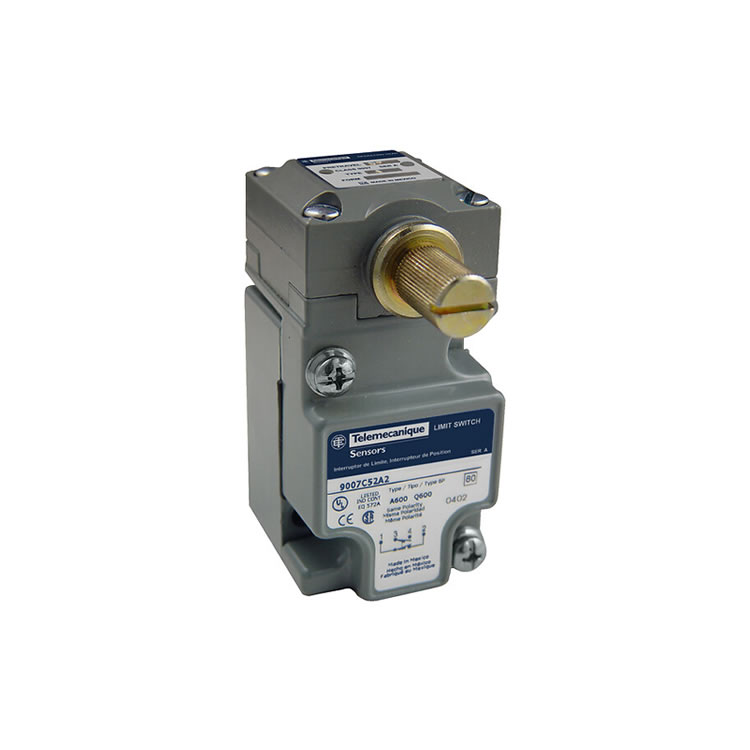

Limit switch, 9007, 600 V 10amp c +options
Range of product: 9007
Series name: Heavy duty
Product or component type: Limit switch
Product specific application: Compact box
Device short name: 9007C
Body type: Plug-in
Head type: Rotary head
Material: Metal
Fixing mode: By the body
Movement of operating head: Rotary
Type of operator: Zinc stay put without operating lever (-)9007C lever
Switch actuation: CW and CCW From left and right
Type of approach: Lateral approach, 1 direction programmable
Electrical connection: Screw-clamp terminals (AWG 22...AWG 12), 1…2
Cable entry: 1 entry for 1/2" - 14 NPT conforming to ANSI B1.20.1
Number of poles: 1
Contacts type and composition: NC-NO
Contact operation: Snap action
Positive opening: Without
Sale per indivisible quantity: 1
