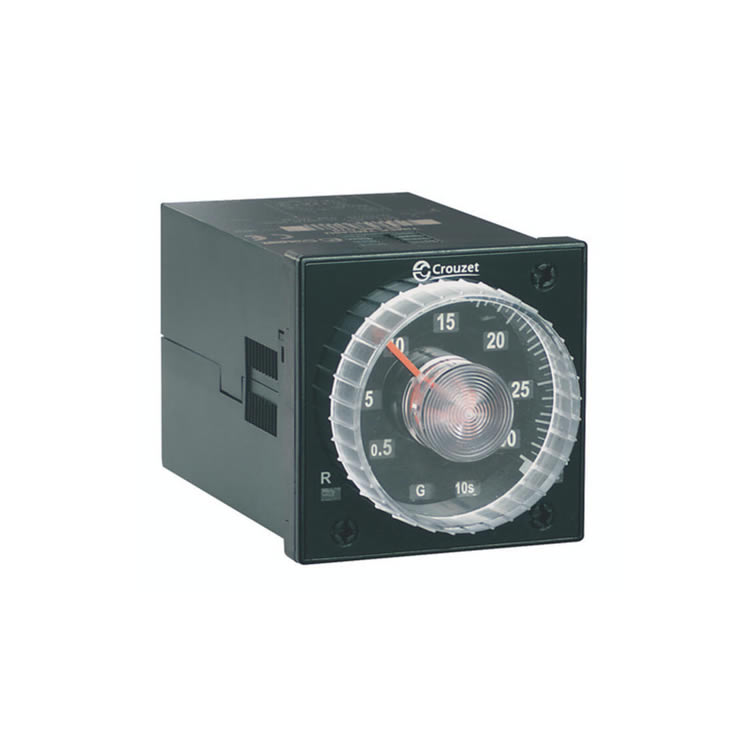

A timer is a simple automation component which is used to manage actions over a period of time or control how long actions last. The timer is a control device which triggers an action according to a time and a function. After a predefined time has elapsed, the timer
closes or opens one or more contacts.
Timing cycles, whether single shot or repetitive, are started by latching inputs or pulsed inputs, allowing a wide variety of functions to be created.
Technical data
| Approvals | CE, CSA, UL |
|---|---|
| Breaking capacity | 2000 VA |
| Current max | 5 A |
| Function | A |
| IP class front | IP50 |
| IP class housing | IP40 |
| Mounting | 8-pin socket, Panel mount |
| Multi-function | No |
| Output | Relay 2 pole C/O |
| Pulse at gate min | 60 ms |
| Pulse at reset min | 60 ms |
| Repeatability | 0.5 % |
| Storage temperature max | 70 °C |
| Storage temperature min | -40 °C |
| Supply voltage | 12-240V DC / 24-240V AC |
| Switching current max | 5 A |
| Temperature operational max | 50 °C |
| Temperature operational min | -20 °C |
| Time range | 0.02 s - 300h |
