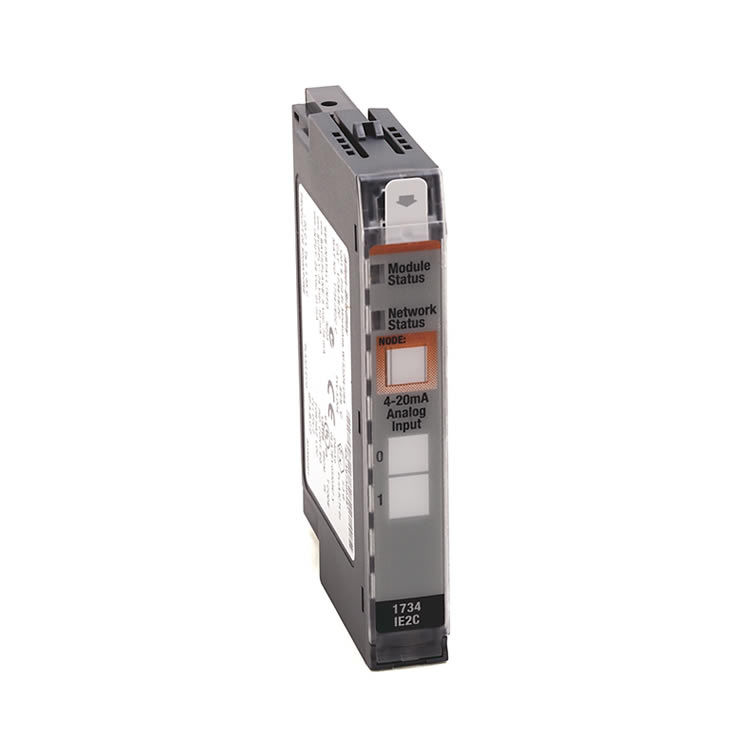

Allen‑Bradley 1734-IE2C Module
The 1734-IE2C is an analog input module that is part of Allen-Bradley’s POINT IO product family. This module features Two (2) single-ended, non-isolated Current input channels. Each channel is configurable for 0-20 mA and 4-20 mA output signals with 16 bits resolution - over 0...21 mA 0.32 μA/cnt. It is compatible with any POINT IO communication adapter, typically used for implementing distributed I/O architecture. This module requires 1734-TB, 1734-TBS, 1734-TOP, or 1734-TOPS wiring base assemblies.
Technical specifications for 1734-IE2C
Manufacturer:Rockwell Automation
Resolution:16 bits – over 0...21 mA 0.32 μA/cnt
Module Type:Analog Input Module
Series:POINT I/O
Part Number/Catalog No.1734-IE2C
Brand:Allen-Bradley
No. of outputs:Two (2) Single-ended, non-isolated channels
Output signal:0-20 mA; 4-20 mA
Current Draw 75 mA 5V dc
Power Dissipation:0.6 W 28.8V DC
Dimensions:56 x 12 x 75.5 mm (2.2 x 0.47 x 2.97 in.)
Enclosure type rating:None (open-style)
Keyswitch position:3
Module Location:1734-TB, 1734-TBS, 1734-TOP, or 1734-TOPS wiring base assembly
Inputs:2-Point
Conversion Type:Delta Sigma
Calibration:Factory Calibrated
Max Overload:Fault Protected 28.8 Volts DC
Enclosure Type:Open
Data Format:Signed Integer
Voltage:10 to 28.8 Volts DC
Current:10 mA
UPC:10612598205230
