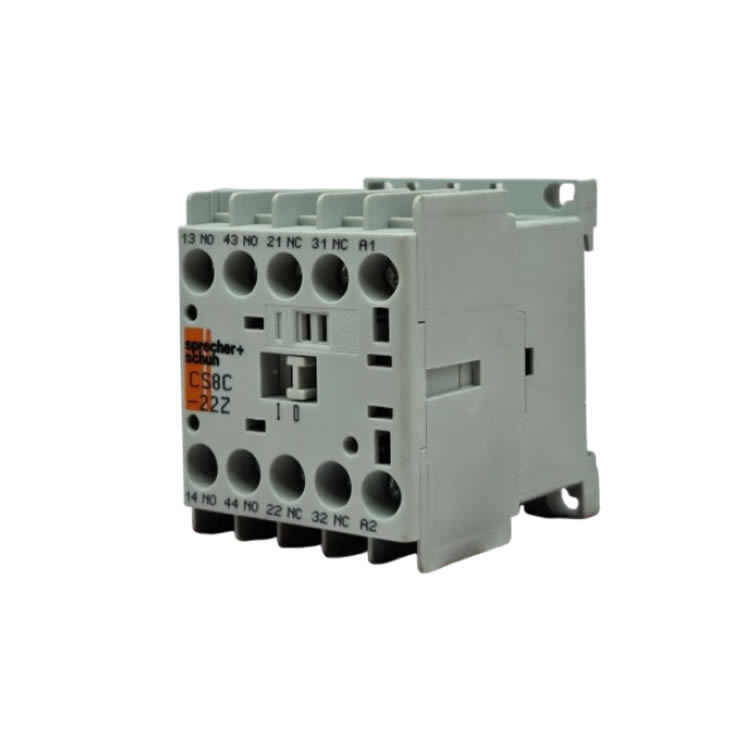

Sprecher+Schuh CS8C-22Z-24D Contactor
1. Product Overview
Model: CS8C-22Z-24D
Type: Industrial-grade electromagnetic contactor
Brand: Sprecher+Schuh (S+S)
Application: Motor control, power distribution, automation systems and other industrial occasions, suitable for frequent operation and high-load switching.
2. Key parameters
Rated current:
22Z means 22A rated current (refer to the manual for details, CS8C series usually covers 9A~150A).
Coil voltage:
24D represents 24V DC (DC power supply, if it is AC, it will be marked as 24AC).
Number of poles:
Standard 3 poles (3P), for three-phase motor control.
Contact configuration:
Main contacts: 3 sets of normally open contacts (3NO)
Auxiliary contacts: Optional expansion module (such as 1NO+1NC).
3. Product features
✔ High reliability: Mechanical life exceeds 1 million times, suitable for frequent switching scenarios.
✔ Modular design: can be flexibly matched with auxiliary contacts, mechanical interlocks and other accessories.
✔ Wide voltage compatibility: supports a variety of coil voltages (12V~600V AC/DC optional).
✔ Safety certification: complies with international electrical standards such as IEC 60947-4-1.
4. Typical applications
Start, stop and reversing control of three-phase asynchronous motors
Industrial pumps, fans, compressors and other power equipment
Automated production lines, distribution cabinets and mechanical control
